Although I’m not sure when I first heard this statement, it has over the centuries stuck in my mind. How do you generate solutions for scenarios you can’t think? Or create items that function on products that have not yet been created?

Flash, Photoshop, and flexible pattern

When I first started designing sites, my go-to technology was Photoshop. I started by making a structure for a 960px canvas that I would later add willing to. The growth phase was about attaining pixel-perfect precision using set widths, fixed levels, and absolute setting.

All of this was altered by Ethan Marcotte’s 2010 content in A List Off entitled” Responsive Web Design.” I was sold on reactive style as soon as I heard about it, but I was even terrified. The pixel-perfect models full of special figures that I had formerly prided myself on producing were no longer good enough.

My first encounter with flexible style didn’t help my fear. My second project was to get an active fixed-width website and make it reactive. I quickly realized that you didn’t just put responsiveness at the end of a job. To make smooth design, you need to prepare throughout the style phase.

A new way to style

Making flexible or smooth websites has always been about removing restrictions and creating content that can be viewed on any system. It relies on the use of percentage-based design, which I immediately achieved with local CSS and power groups:

.column-span-6 { width: 49%; float: left; margin-right: 0.5%; margin-left: 0.5%;}.column-span-4 { width: 32%; float: left; margin-right: 0.5%; margin-left: 0.5%;}.column-span-3 { width: 24%; float: left; margin-right: 0.5%; margin-left: 0.5%;}

Therefore with Sass but that I could use @includes to re-use repeated blocks of code and transition to more semantic html:

.logo { @include colSpan(6);}.search { @include colSpan(3);}.social-share { @include colSpan(3);}

Media concerns

The next ingredient for reactive design is press queries. Without them, regardless of whether the information was still readable, may reduce to fit the available space.

Media concerns prevented this by allowing us to add breakpoints where the design could adapt. Like most people, I started out with three breakpoints: one for desktop, one for tablets, and one for mobile. Over the years, I added more and more for phablets, wide screens, and so on.

For years, I happily worked this way and improved both my design and front-end skills in the process. The only problem I encountered was making changes to content, since with our Sass grid system in place, there was no way for the site owners to add content without amending the markup—something a small business owner might struggle with. This is because each row in the grid was defined using a div as a container. Adding content meant creating new row markup, which requires a level of HTML knowledge.

String premium was a mainstay of early flexible design, present in all the frequently used systems like Bootstrap and Skeleton.


1 of 7

2 of 7

3 of 7

4 of 7

5 of 7

6 of 7

7 of 7

Another difficulty arose as I moved from a design firm building websites for little- to medium-sized companies, to larger in-house teams where I worked across a collection of related sites. In those capacities, I began to work many more with washable pieces.

Our rely on multimedia queries resulted in parts that were tied to frequent window sizes. If the goal of part libraries is modify, then this is a real problem because you can just use these components if the devices you’re designing for correspond to the viewport sizes used in the pattern library—in the process never really hitting that “devices that don’t already occur” goal.

Then there’s the problem of space. Media concerns allow components to adapt based on the viewport size, but what if I put a component into a sidebar, like in the figure below?

Container queries: our savior or a false dawn?

Container queries have long been touted as an improvement upon media queries, but at the time of writing are unsupported in most browsers. Workarounds for JavaScript exist, but they can lead to dependencies and compatibility issues. The basic theory underlying container queries is that elements should change based on the size of their parent container and not the viewport width, as seen in the following illustrations.

One of the biggest arguments in favor of container queries is that they help us create components or design patterns that are truly reusable because they can be picked up and placed anywhere in a layout. This is an important step in moving toward a form of component-based design that works at any size on any device.

In other words, responsive elements are meant to replace responsive layouts.

Container queries will help us move from designing pages that respond to the browser or device size to designing components that can be placed in a sidebar or in the main content, and respond accordingly.

My issue is that layout is still used to determine when a design needs to adapt. This approach will always be restrictive, as we will still need pre-defined breakpoints. For this reason, my main question with container queries is, How would we decide when to change the CSS used by a component?

The best place to make that choice is probably not a component library that is disconnected from context and real content.

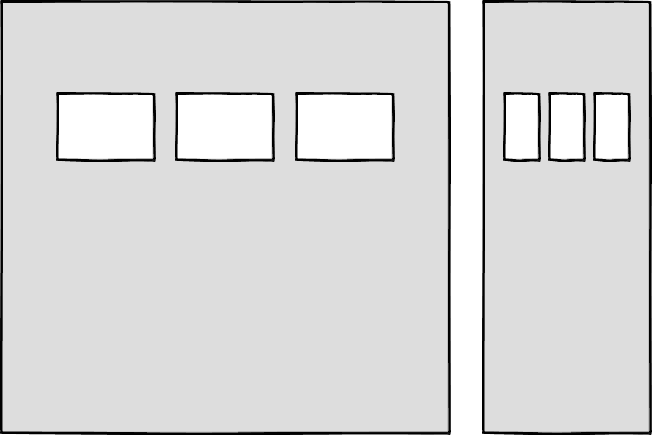

As the diagrams below illustrate, we can use container queries to create designs for specific container widths, but what if I want to change the design based on the image size or ratio?

In this example, the dimensions of the container are not what should dictate the design, rather, the image is.

Without reliable cross-browser support, it’s difficult to say for certain whether container queries will succeed. Responsive component libraries would definitely evolve how we design and would improve the possibilities for reuse and design at scale. However, we might need to modify these elements in order to fit our content.

CSS is changing

Whilst the container query debate rumbles on, there have been numerous advances in CSS that change the way we think about design. The days of fixed-width elements measured in pixels and floated div elements used to cobble layouts together are long gone, consigned to history along with table layouts. Flexbox and CSS Grid have revolutionized layouts for the web. We can now create elements that wrap onto new rows when they run out of space, not when the device changes.

.wrapper { display: grid; grid-template-columns: repeat(auto-fit, 450px); gap: 10px;}

The repeat() function paired with auto-fit or auto-fill allows us to specify how much space each column should use while leaving it up to the browser to decide when to spill the columns onto a new line. Similar things can be achieved with Flexbox, as elements can wrap over multiple rows and “flex” to fill available space.

.wrapper { display: flex; flex-wrap: wrap; justify-content: space-between;}.child { flex-basis: 32%; margin-bottom: 20px;}

The biggest benefit of all of this is that you don’t have to wrap elements in container rows. Without rows, content isn’t tied to page markup in quite the same way, allowing for removals or additions of content without additional development.

This is a big step forward when it comes to creating designs that allow for evolving content, but the real game changer for flexible designs is CSS Subgrid.

Remember the days of crafting perfectly aligned interfaces, only for the customer to add an unbelievably long header almost as soon as they’re given CMS access, like the illustration below?

Subgrid allows elements to respond to adjustments in their own content and in the content of sibling elements, helping us create designs more resilient to change.

.wrapper { display: grid; grid-template-columns: repeat(auto-fit, minmax(150px, 1fr)); grid-template-rows: auto 1fr auto; gap: 10px;}.sub-grid { display: grid; grid-row: span 3; grid-template-rows: subgrid; /* sets rows to parent grid */}

CSS Grid allows us to separate layout and content, thereby enabling flexible designs. Meanwhile, Subgrid allows us to create designs that can adapt in order to suit morphing content. The above code can be implemented behind an @supports feature query even though Firefox is the only browser that supports subgrid at the time of writing.

Intrinsic layouts

I’d be remiss not to mention intrinsic layouts, a term used by Jen Simmons to describe a mix of contemporary and traditional CSS features used to create layouts that respond to available space.

Responsive layouts have flexible columns using percentages. Intrinsic layouts, on the other hand, use the fr unit to create flexible columns that won’t ever shrink so much that they render the content illegible.

frunits is a statement that says,” I want you to distribute the extra space in this way, but never make it smaller than the content that is inside.”

—Jen Simmons,” Designing Intrinsic Layouts”

Additionally, intrinsic layouts can mix and match both fixed and flexible units, letting the content choose how much space is taken up.

What makes intrinsic design stand out is that it not only creates designs that can withstand future devices but also helps scale design without losing flexibility. Without having the same breakpoints or the same amount of content as in the previous implementation, components and patterns can be lifted and reused.

We can now create designs that adapt to the space they have, the content within them, and the content around them. We can create responsive components without relying on container queries using an intrinsic approach.

Another 2010 moment?

This intrinsic approach should in my view be every bit as groundbreaking as responsive web design was ten years ago. It’s another “everything changed” moment for me.

But it doesn’t seem to be moving quite as fast, I haven’t yet had that same career-changing moment I had with responsive design, despite the widely shared and brilliant talk that brought it to my attention.

One possible explanation for that might be that I now work for a sizable company, which is significantly different from the role I held as a design agency in 2010: In my agency days, every new project was a clean slate, a chance to try something new. Nowadays, projects use existing tools and frameworks and are often improvements to existing websites with an existing codebase.

Another possibility is that I now feel more prepared for change. In 2010 I was new to design in general, the shift was frightening and required a lot of learning. Additionally, an intrinsic approach isn’t exactly all-new; it’s about applying existing skills and CSS knowledge in a unique way.

You can’t framework your way out of a content problem

Another reason for the slightly slower adoption of intrinsic design could be the lack of quick-fix framework solutions available to kick-start the change.

Ten years ago, responsive grid systems were everywhere. With a framework like Bootstrap or Skeleton, you had a responsive design template at your fingertips.

Because the benefit of having a selection of units is a hindrance when it comes to creating layout templates, intrinsic design and frameworks do not go hand in hand quite as well. The beauty of intrinsic design is combining different units and experimenting with techniques to get the best for your content.

And then there are design tools. We probably all used Photoshop templates for desktop, tablet, and mobile devices at some point in our careers to drop designs in and demonstrate how the site would look at each of the three stages.

How do you do that now, with each component responding to content and layouts flexing as and when they need to? Personally, I’m a big fan of this kind of design in the browser.

The debate about “whether designers should code” is another that has rumbled on for years. When designing a digital product, we should, at the very least, design for a best- and worst-case scenario when it comes to content. It’s not ideal to do this in a graphics-based software package. In code, we can add longer sentences, more radio buttons, and extra tabs, and watch in real time as the design adapts. Does it continue to function? Is the design too reliant on the current content?

Personally, I look forward to the day intrinsic design is the standard for design, when a design component can be truly flexible and adapt to both its space and content with no reliance on device or container dimensions.

First, the content

Content is not constant. After all, to design for the unanticipated or unexpected, we must take into account content modifications, such as the earlier Subgrid card example, which allowed the cards to adjust both their own content and that of their sibling elements.

Thankfully, there’s more to CSS than layout, and plenty of properties and values can help us put content first. Subgrid and pseudo-elements like ::first-line and ::first-letter help to separate design from markup so we can create designs that allow for changes.

Instead of dated markup tricks like this —

 First line of text with different styling...

—we can target content based on where it appears.

.element::first-line { font-size: 1.4em;}.element::first-letter { color: red;}

Much bigger additions to CSS include logical properties, which change the way we construct designs using logical dimensions (start and end) instead of physical ones (left and right), something CSS Grid also does with functions like min(), max(), and clamp().

This flexibility allows for directional changes according to content, a common requirement when we need to present content in multiple languages. In the past, this was often achieved with Sass mixins but was often limited to switching from left-to-right to right-to-left orientation.

Directional variables must be specified in the Sass version.

$direction: rtl;$opposite-direction: ltr;$start-direction: right;$end-direction: left;

These variables can be used as values—

body { direction: $direction; text-align: $start-direction;}

—or as properties.

margin-#{$end-direction}: 10px;padding-#{$start-direction}: 10px;

However, now we have native logical properties, removing the reliance on both Sass ( or a similar tool ) and pre-planning that necessitated using variables throughout a codebase. These properties also start to break apart the tight coupling between a design and strict physical dimensions, creating more flexibility for changes in language and in direction.

margin-block-end: 10px;padding-block-start: 10px;

There are also native start and end values for properties like text-align, which means we can replace text-align: right with text-align: start.

Like the earlier examples, these properties help to build out designs that aren’t constrained to one language, the design will reflect the content’s needs.

Fluid and fixed

We briefly covered the power of combining fixed widths with fluid widths with intrinsic layouts. The min() and max() functions are a similar concept, allowing you to specify a fixed value with a flexible alternative.

For min() this means setting a fluid minimum value and a maximum fixed value.

.element { width: min(50%, 300px);}

The element in the figure above will be 50 % of its container as long as the element’s width doesn’t exceed 300px.

For max() we can set a flexible max value and a minimum fixed value.

.element { width: max(50%, 300px);}

Now the element will be 50 % of its container as long as the element’s width is at least 300px. This means we can set limits but allow content to react to the available space.

The clamp() function builds on this by allowing us to set a preferred value with a third parameter. Now we can allow the element to shrink or grow if it needs to without getting to a point where it becomes unusable.

.element { width: clamp(300px, 50%, 600px);}

This time, the element’s width will be 50 % of its container’s preferred value, with no exceptions for 300px and 600px.

With these techniques, we have a content-first approach to responsive design. We can separate content from markup, meaning the changes users make will not affect the design. By making plans for unanticipated changes in language or direction, we can begin to future-proof designs. And we can increase flexibility by setting desired dimensions alongside flexible alternatives, allowing for more or less content to be displayed correctly.

Situation first

Thanks to what we’ve discussed so far, we can cover device flexibility by changing our approach, designing around content and space instead of catering to devices. But what about that last bit of Jeffrey Zeldman’s quote,”… situations you haven’t imagined”?

It’s a completely different design process for someone using a mobile phone and moving through a crowded street in glaring sunshine from a person using a desktop computer. Situations and environments are hard to plan for or predict because they change as people react to their own unique challenges and tasks.

This is why making a choice is so crucial. One size never fits all, so we need to design for multiple scenarios to create equal experiences for all our users.

Thankfully, there is a lot we can do to provide choice.

Responsible design

” There are parts of the world where mobile data is prohibitively expensive, and where there is little or no broadband infrastructure”.

On a 50 MB budget, I spent a day surfing the web.

Chris Ashton

One of the biggest assumptions we make is that people interacting with our designs have a good wifi connection and a wide screen monitor. However, our users may be commuters using smaller mobile devices that may experience drops in connectivity while traveling on trains or other modes of transportation. There is nothing more frustrating than a web page that won’t load, but there are ways we can help users use less data or deal with sporadic connectivity.

The srcset attribute allows the browser to decide which image to serve. This means we can create smaller ‘cropped’ images to display on mobile devices in turn using less bandwidth and less data.

The preload attribute can also help us to think about how and when media is downloaded. It can be used to tell a browser about any critical assets that need to be downloaded with high priority, improving perceived performance and the user experience.

There’s also native lazy loading, which indicates assets that should only be downloaded when they are needed.

With srcset, preload, and lazy loading, we can start to tailor a user’s experience based on the situation they find themselves in. What none of this does, however, is allow the user themselves to decide what they want downloaded, as the decision is usually the browser’s to make.

So how can we put users in control?

The media queries are now being returned.

Media concerns have always been about much more than device sizes. They allow content to adapt to different situations, with screen size being just one of them.

We’ve long been able to check for media types like print and speech and features such as hover, resolution, and color. These checks allow us to provide options that suit more than one scenario, it’s less about one-size-fits-all and more about serving adaptable content.

The Level 5 spec for Media Queries is still being developed as of this writing. It introduces some really exciting queries that in the future will help us design for multiple other unexpected situations.

For instance, a light-level feature allows you to alter a user’s style when they are in the sun or in the dark. Paired with custom properties, these features allow us to quickly create designs or themes for specific environments.

@media (light-level: normal) { --background-color: #fff; --text-color: #0b0c0c; }@media (light-level: dim) { --background-color: #efd226; --text-color: #0b0c0c;}

Another key feature of the Level 5 spec is personalization. Instead of creating designs that are the same for everyone, users can choose what works for them. This is achieved by using features like prefers-reduced-data, prefers-color-scheme, and prefers-reduced-motion, the latter two of which already enjoy broad browser support. These features tap into preferences set via the operating system or browser so people don’t have to spend time making each site they visit more usable.

Media concerns like this go beyond choices made by a browser to grant more control to the user.

Expect the unexpected

In the end, we should always anticipate that things will change. Devices in particular change faster than we can keep up, with foldable screens already on the market.

We can design for content, but we can’t do it the same way we have for this constantly changing landscape. By putting content first and allowing that content to adapt to whatever space surrounds it, we can create more robust, flexible designs that increase the longevity of our products.

A lot of the CSS discussed here is about moving away from layouts and putting content at the heart of design. There are still many more things we can do to adopt a more intrinsic approach, from responsive to fluid and fixed. Even better, we can test these techniques during the design phase by designing in-browser and watching how our designs adapt in real-time.

When it comes to unexpected circumstances, we must make sure our goods are accessible whenever and wherever needed. We can move closer to achieving this by involving users in our design decisions, by creating choice via browsers, and by giving control to our users with user-preference-based media queries.

Good design for the unexpected should allow for change, provide choice, and give control to those we serve: our users themselves.

We’ve been conversing for a long time. Whether to present information, perform transactions, or just to check in on one another, people have yammered aside, chattering and gesticulating, through spoken discussion for many generations. Only recently have we begun to write our conversations, and only recently have we outsourced them to the system, a system that exhibits a far greater affection for written communications than for the vernacular rigors of spoken speech.

Laptops have trouble because between spoken and written speech, talk is more primitive. Machines must wrestle with the chaos of human statement, including the squabbling and pauses, the gestures and body vocabulary, and the dialect variations that can impede even the most skillfully created human-computer conversation. In the human-to-human situation, spoken language also has the opportunity of face-to-face call, where we can easily interpret visual interpersonal cues.

In contrast, written language develops its own fossil record of dated terms and phrases as we report it and retain utilization long after they are no longer relevant in spoken communication ( for example, the welcome” To whom it may concern” ). Because it tends to be more consistent, smooth, and proper, written word is necessarily far easier for devices to interpret and know.

This pleasure is not available in spoken speech. Besides the visual cues that mark conversations with emphasis and personal context, there are also linguistic cues and outspoken behaviors that mimic conversation in complex ways: how something is said, never what. Our spoken language conveys much more than the published word can actually contain, whether it’s rapid-fire, low-pitched, high-decibel, sarcastic, stiff, or groaning. But when it comes to tone interfaces—the devices we conduct spoken discussions with—we experience exciting difficulties as designers and content strategists.

Voice-to-text relations

We interact with voice interfaces for a variety of reasons, but according to Michael McTear, Zoraida Callejas, and David Griol in The Conversational Interface, those motivations by and large mirror the reasons we initiate conversations with other people, too ( ). We typically strike up a discussion by:

• we need something done ( such as a transaction ),
• we want to hear something, some kind of data, or
• we are social people and want someone to talk to ( conversation for conversation’s pleasure ).

These three categories, which I refer to as interpersonal, technical, and prosocial, also apply to virtually every voice interaction: a solitary conversation that begins with the voice interface’s initial greeting and ends with the user leaving the interface. Notice here that a discussion in our individual sense—a talk between people that leads to some outcome and lasts an arbitrary length of time—could encompass many interpersonal, technical, and interpersonal voice interactions in succession. In other words, a voice interaction is a conversation, but it is not always just one voice interaction.

Purely prosocial conversations are more gimmicky than captivating in most voice interfaces, because machines don’t yet have the capacity to really want to know how we’re doing and to do the sort of glad-handing humans crave. Users are also debating whether or not they prefer the kind of organic human conversation that starts with a prosocial voiceover and progresses seamlessly into other types. In fact, in Voice User Interface Design, Michael Cohen, James Giangola, and Jennifer Balogh recommend sticking to users ‘ expectations by mimicking how they interact with other voice interfaces rather than trying too hard to be human—potentially alienating them in the process ( ).

A voice interface can also have two types of conversations we can have with one another that are both transactional and informational, each learning something new ( “discuss a musical” ).

Transactional voice interactions

When you order a Hawaiian pizza with extra pineapple, you’re typically having a conversation and a voice interaction when you’re tapping buttons on a food delivery app. Even when we walk up to the counter and place an order, the conversation quickly pivots from an initial smattering of neighborly small talk to the real mission at hand: ordering a pizza ( generously topped with pineapple, as it should be ).

How are things going, Alison?

Burhan: Hi, welcome to Crust Deluxe! It’s chilly outside. How can I help you?

Can I get a Hawaiian pizza with extra pineapple, Alison?

Burhan: Sure, what size?

Alison: Big.

Burhan: Anything else?

Alison: No thanks, that’s it.

Burhan: Something to drink?

I’ll have a bottle of Coke, Alison.

Burhan: You got it. It will cost about$ 15 and take fifteen minutes to complete.

Each progressive disclosure in this transactional conversation reveals more and more of the desired outcome of the transaction: a service rendered or a product delivered. Conversations that are transactional have certain characteristics: they are direct, concise, and cost-effective. They quickly dispense with pleasantries.

Informational voice interactions

Meanwhile, some conversations are primarily about obtaining information. Alison might visit Crust Deluxe with the sole intention of placing an order, but she might not want to leave with a pizza at all. She might be just as interested in whether they serve halal or kosher dishes, gluten-free options, or something else. Even though we have a prosocial mini-conversation once more at the beginning to practice politeness, we are after much more.

How are things going, Alison?

Burhan: Hi, welcome to Crust Deluxe! It’s chilly outside. How can I help you?

Alison: Can I ask a few questions?

Burhan: Of course! Go right ahead.

Alison, do you have any menu items that are halal?

Burhan: Absolutely! On request, we can make any pie halal. We also have lots of vegetarian, ovo-lacto, and vegan options. Are you considering any additional dietary restrictions?

Alison: What about gluten-free pizzas?

Burhan: For both our deep-dish and thin-crust pizzas, we can definitely make a gluten-free crust for you. Anything else I can answer for you?

Alison: That’s it for now. Good to know. Thank you!

Burhan: Anytime, come back soon!

This dialogue is entirely different. Here, the goal is to get a certain set of facts. Informational conversations are research expeditions to gather data, news, or facts, or they are investigative quests for the truth. Voice interactions that are informational might be more long-winded than transactional conversations by necessity. In order for the customer to understand the key takeaways, responses are typically longer, more in-depth, and carefully communicated.

Voice Interfaces

Voice interfaces essentially use speech to assist users in accomplishing their objectives. But simply because an interface has a voice component doesn’t mean that every user interaction with it is mediated through voice. We’re most concerned with pure voice interfaces, which depend entirely on spoken conversation and lack any visual component, making multimodal voice interfaces much more nuanced and challenging to deal with because they can lean on visual components like screens as crutches.

Though voice interfaces have long been integral to the imagined future of humanity in science fiction, only recently have those lofty visions become fully realized in genuine voice interfaces.

IVR ( interactive voice response ) systems

Though written conversational interfaces have been fixtures of computing for many decades, voice interfaces first emerged in the early 1990s with text-to-speech ( TTS ) dictation programs that recited written text aloud, as well as speech-enabled in-car systems that gave directions to a user-provided address. We became familiar with the first real voice interfaces that could actually be spoken to without having to deal with overburdened customer service representatives as a result of the development of interactive voice response ( IVR ) systems.

IVR systems allowed organizations to reduce their reliance on call centers but soon became notorious for their clunkiness. When you call an airline or hotel company, which is a common practice in the corporate world, these systems were primarily intended as metaphorical switchboards to direct customers to a real phone agent (” Say Reservations to book a flight or check an itinerary” ), which are more likely to happen when you call one. Despite their functional issues and users ‘ frustration with their inability to speak to an actual human right away, IVR systems proliferated in the early 1990s across a variety of industries (, PDF).

IVR systems have a reputation for having less scintillating conversation than we’re used to in real life ( or even in science fiction ), but they are great for highly repetitive, monotonous conversations that typically don’t veer from a single format.

Screen readers

The screen reader, a program that converts visual information into synthesized speech, was a development that accompanied the development of IVR systems. For Blind or visually impaired website users, it’s the predominant method of interacting with text, multimedia, or form elements. Perhaps the closest thing we have today to an out-of-the-box delivery of content via voice is represented by screen readers.

Among the first screen readers known by that moniker was the Screen Reader for the BBC Micro and NEEC Portable developed by the Research Centre for the Education of the Visually Handicapped (RCEVH) at the University of Birmingham in 1986 ( ). The first IBM Screen Reader for text-based computers was created by Jim Thatcher in the same year, which was later recreated for a computer with graphical user interfaces ( GUIs ) ( ).

With the rapid growth of the web in the 1990s, the demand for accessible tools for websites exploded. Screen readers started facilitating quick interactions with web pages that ostensibly allow disabled users to traverse the page as an aural and temporal space rather than a visual and physical one with the introduction of semantic HTML and especially ARIA roles in 2008, enabling speedy interactions with the pages. In other words, screen readers for the web “provide mechanisms that translate visual design constructs—proximity, proportion, etc. in A List Apart, writes Aaron Gustafson, “into useful information.” ” At least they do when documents are authored thoughtfully” ( ).

Although incredibly instructive for voice interface designers, screen readers have a major flaw: they’re challenging to use and consistently verbose. The visual structures of websites and web navigation don’t translate well to screen readers, sometimes resulting in unwieldy pronouncements that name every manipulable HTML element and announce every formatting change. Working with web-based interfaces is a cognitive burden for many screen reader users.

In Wired, accessibility advocate and voice engineer Chris Maury considers why the screen reader experience is ill-suited to users relying on voice:

I hated the way Screen Readers operated from the beginning. Why are they designed the way they are? It makes no sense to present information visually and then only to have that information translated into audio. All of the time and energy that goes into creating the perfect user experience for an app is wasted, or even worse, adversely impacting the experience for blind users. __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

In many cases, well-designed voice interfaces can speed users to their destination better than long-winded screen reader monologues. After all, users of the visual interface have the advantage of freely scurrying around the viewport to find information, ignoring areas that are unimportant to them. Blind users, meanwhile, are obligated to listen to every utterance synthesized into speech and therefore prize brevity and efficiency. Users with disabilities who have long had no choice but to use clumsy screen readers might find that voice interfaces, especially more contemporary voice assistants, provide a more streamlined experience.

Voice assistants

Many of us immediately associate voice assistants with the popular subset of voice interfaces found in living rooms, smart homes, and offices with the film A Space Odyssey or with Majel Barrett’s voice as the omniscient computer from Star Trek. Voice assistants are akin to personal concierges that can answer questions, schedule appointments, conduct searches, and perform other common day-to-day tasks. And because of their assistive potential, they are quickly gaining more and more attention from accessibility advocates.

Before the earliest IVR systems found success in the enterprise, Apple published a demonstration video in 1987 depicting the Knowledge Navigator, a voice assistant that could transcribe spoken words and recognize human speech to a great degree of accuracy. Then, in 2001, Tim Berners-Lee and others created their vision for a” semantic web agent” that would carry out routine tasks like” checking calendars, making appointments, and finding locations” ( hinter paywall ). It wasn’t until 2011 that Apple’s Siri finally entered the picture, making voice assistants a tangible reality for consumers.

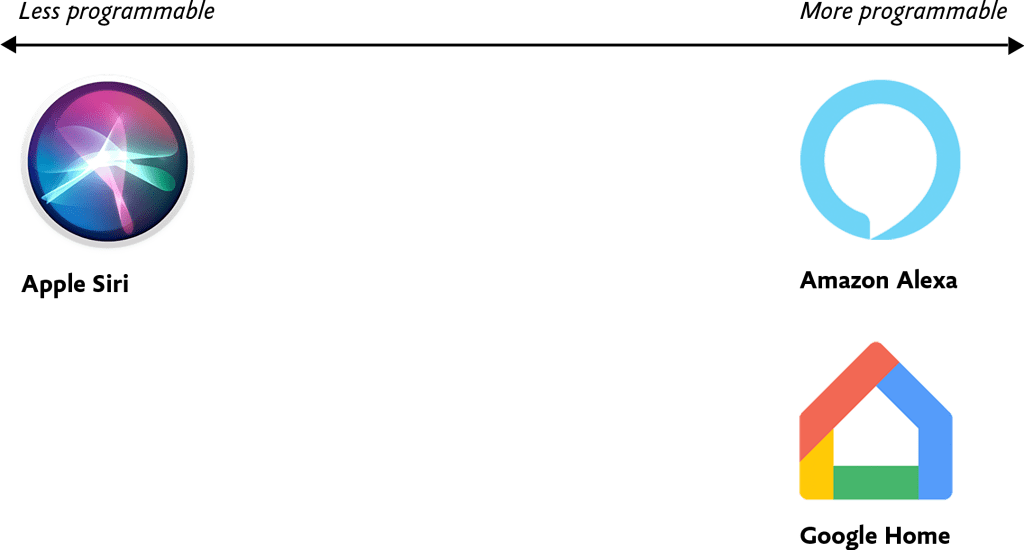

There is a significant variation in how programmable and customizable some voice assistants are compared to others due to the sheer number of voice assistants available today ( Fig 1 ). At one extreme, everything except vendor-provided features is locked down, for example, at the time of their release, the core functionality of Apple’s Siri and Microsoft’s Cortana couldn’t be extended beyond their existing capabilities. There are no other means by which developers can interact with Siri at a low level, aside from predefined categories of tasks like sending messages, hailing rideshares, making restaurant reservations, and other things, which are still unavoidable today.

At the opposite end of the spectrum, voice assistants like Amazon Alexa and Google Home offer a core foundation on which developers can build custom voice interfaces. For this reason, developers who feel constrained by the limitations of Siri and Cortana are increasingly using programmable voice assistants that are extensibable and customizable. Amazon offers the Alexa Skills Kit, a developer framework for building custom voice interfaces for Amazon Alexa, while Google Home offers the ability to program arbitrary Google Assistant skills. Users today have the option to choose from among the thousands of custom-built skills available in the Google Assistant and Amazon Alexa ecosystems.

As businesses like Amazon, Apple, Microsoft, and Google continue to occupy their positions, they are also selling and open-sourcing an unheard array of tools and frameworks for designers and developers, aiming to make creating voice interfaces as simple as possible, even without code.

Often by necessity, voice assistants like Amazon Alexa tend to be monochannel—they’re tightly coupled to a device and can’t be accessed on a computer or smartphone instead. In contrast, many development platforms, like Google’s Dialogflow, now support omnichannel features, allowing users to create a single conversational interface that then becomes a voice interface, textual chatbot, and IVR system upon deployment. I don’t prescribe any specific implementation approaches in this design-focused book, but in Chapter 4 we’ll get into some of the implications these variables might have on the way you build out your design artifacts.

Voice content

Simply put, voice content is content delivered through voice. Voice content must be free-flowing, organic, contextless, and concise in order to preserve what makes human conversation so compelling in the first place.

Our world is replete with voice content in various forms: screen readers reciting website content, voice assistants rattling off a weather forecast, and automated phone hotline responses governed by IVR systems. We’re most concerned with the content in this book being delivered auditorically, not as an option but as a necessity.

For many of us, our first foray into informational voice interfaces will be to deliver content to users. There is only one issue: any content we already have isn’t in any way suitable for this new environment. So how do we make the content trapped on our websites more conversational? And how do we create fresh copy that works with voice-activated text?

Lately, we’ve begun slicing and dicing our content in unprecedented ways. Websites are, in many ways, colossal vaults of what I call macrocontent: lengthy prose that can last for miles in a browser window, like microfilm viewers of newspaper archives. Back in 2002, well before the present-day ubiquity of voice assistants, technologist Anil Dash defined microcontent as permalinked pieces of content that stay legible regardless of environment, such as email or text messages:

An example of microcontent can be a day’s weather forecast [sic], an airplane flight’s arrival and departure times, an abstract from a lengthy publication, or a single instant message. __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

I would update Dash’s definition of microcontent to include all instances of bite-sized content that goes beyond written communiqués. After all, today we encounter microcontent in interfaces where a small snippet of copy is displayed alone, unmoored from the browser, like a textbot confirmation of a restaurant reservation. Informing delivery channels both established and novel, Microcontent provides the best opportunity to find out how your content can be stretched to the limits of its potential.

As microcontent, voice content is unique because it’s an example of how content is experienced in time rather than in space. We can instantly see when the next train is coming from a digital sign underground, but voice interfaces keep our attention captive for so long that we can’t quickly evade or skip, a feature that screen reader users are all too familiar with.

Because microcontent is fundamentally made up of isolated blobs with no relation to the channels where they’ll eventually end up, we need to ensure that our microcontent truly performs well as voice content—and that means focusing on the two most important traits of robust voice content: voice content legibility and voice content discoverability.

Our voice content’s legibility and discoverability in general both depend on how it manifests in terms of perceived space and time.

Many wealthy runners had come to the conclusion that it was impossible to run a mile in less than four hours in the 1950s. Riders had been attempting it since the later 19th century and were beginning to draw the conclusion that the human body just wasn’t built for the job.

But Roger Bannister surprised all on May 6, 1956. It was a cold, damp morning in Oxford, England—conditions no one expected to give themselves to record-setting—and but Bannister did really that, running a mile in 3: 59.4 and becoming the first people in the history books to run a mile in under four hours.

The world today knew that the four-minute hour was possible because of this change in the standard. Bannister’s history lasted just forty-six days, when it was snatched aside by American sprinter John Landy. Finally, a year later, three runners all managed to cross the four-minute challenge in the same competition. Since therefore, over 1, 400 walkers have actually run a mile in under four days, the current document is 3: 43.13, held by Moroccan performer Hicham El Guerrouj.

We do a lot more when we think something is possible, and we only think it can be done when we see someone else doing it once more. As for individual running speed, we also think there are strict guidelines for how a website should do.

Establishing requirements for a green website

The key indicators of climate performance in most big companies are pretty well established, such as power per square metre for homes and miles per gallon for cars. The tools and methods for calculating those measures are standardized as well, which keeps everyone on the same site when doing economic evaluations. But, we are not required to follow any specific environmental standards in the world of websites and apps, and we have only recently developed the tools and methods to do so.

The main objective in green web layout is to reduce carbon emissions. However, it’s nearly impossible to accurately assess the CO₂ output of a online product. We didn’t measure the pollutants coming out of the exhaust valves on our laptops. The pollution coming from power plants that burn coal and oil are considerably away, out of sight, and out of mind. We have no way to track the particles from a website or app up to the power station where the light is being generated and really know the exact amount of house oil produced. What then do we do?

If we can‘t measure the actual carbon pollution, therefore we need to get what we can measure. The following are the main elements that could be used as coal pollution gauges:

1. Transfer of data
2. Coal content of light

Let’s take a look at how we can use these indicators to calculate the energy use, and in turn the carbon footprint, of the sites and web applications we create.

Transfer of data

Most researchers use kilowatt-hours per gigabyte (k Wh/GB ) as a metric of energy efficiency when measuring the amount of data transferred over the internet when a website or application is used. This serves as a great example of how much energy is consumed and how much carbon is released. As a rule of thumb, the more data transferred, the more energy used in the data center, telecoms networks, and end user devices.

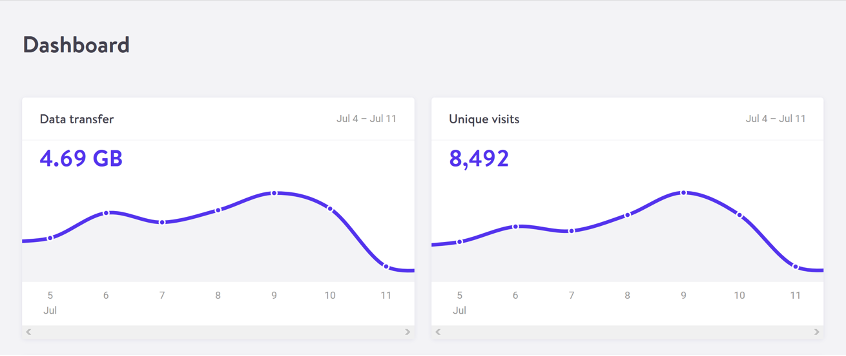

The most accurate way to calculate data transfer for a single visit for web pages is to measure the page weight, which is the first time a user visits the page in kilobytes. It’s fairly easy to measure using the developer tools in any modern web browser. Frequently, the statistics for the total data transfer of any web application are included in your web hosting account ( Fig. 2.1 ).

The nice thing about page weight as a metric is that it allows us to compare the efficiency of web pages on a level playing field without confusing the issue with constantly changing traffic volumes.

A large scope is necessary to reduce page weight. By early 2020, the median page weight was 1.97 MB for setups the HTTP Archive classifies as “desktop” and 1.77 MB for “mobile”, with desktop increasing 36 percent since January 2016 and mobile page weights nearly doubling in the same period ( Fig 2.2 ). Image files account for the majority of this data transfer, making them the single biggest contributor to carbon emissions on a typical website.

History clearly shows us that our web pages can be smaller, if only we set our minds to it. While the majority of technologies, including the underlying technology of the web like data centers and transmission networks, become more and more energy efficient, websites themselves become less effective as time goes on.

You might be aware of the project team’s focus on creating faster user experiences using the concept of performance budgeting. For example, we might specify that the website must load in a maximum of one second on a broadband connection and three seconds on a 3G connection. Performance budgets are upper limits rather than vague suggestions, much like speed limits while driving, so the goal should always be to come within budget.

Designing for fast performance does often lead to reduced data transfer and emissions, but it isn’t always the case. Page weight and transfer size are more objective and reliable benchmarks for sustainable web design, whereas web performance often depends more on the user’s perception of load times than it does on how effective the underlying system is.

We can set a page weight budget in reference to a benchmark of industry averages, using data from sources like HTTP Archive. We can also use competitor page weights and the website’s current layout to compare it to. For example, we might set a maximum page weight budget as equal to our most efficient competitor, or we could set the benchmark lower to guarantee we are best in class.

We could start looking at the transferability of our web pages for repeat visitors if we want to take it one step further. Although page weight for the first time someone visits is the easiest thing to measure, and easy to compare on a like-for-like basis, we can learn even more if we start looking at transfer size in other scenarios too. For instance, visitors who load the same page more frequently are likely to have a high percentage of the files cached in their browser, which means they don’t need to move all the files on subsequent visits. Likewise, a visitor who navigates to new pages on the same website will likely not need to load the full page each time, as some global assets from areas like the header and footer may already be cached in their browser. We can learn even more about how to optimize efficiency for users who regularly visit our pages by measuring transfer size at this next level of detail, which will also enable us to establish page weight budgets for situations that extend beyond the initial visit.

Page weight budgets are easy to track throughout a design and development process. Although they don’t actually provide direct information on carbon emissions and energy consumption, they do provide a clear indicator of efficiency in comparison to other websites. And as transfer size is an effective analog for energy consumption, we can actually use it to estimate energy consumption too.

In summary, less data transfer leads to more energy efficiency, which is a crucial component of lowering web product carbon emissions. The more efficient our products, the less electricity they use, and the less fossil fuels need to be burned to produce the electricity to power them. However, as we’ll see next, it’s important to take into account the source of that electricity because all web products require some power.

Coal content of light

Regardless of energy efficiency, the level of pollution caused by digital products depends on the carbon intensity of the energy being used to power them. The term” carbon intensity” (gCO₂/k Wh ) is used to describe how much carbon dioxide is produced for each kilowatt-hour of electricity ). This varies widely, with renewable energy sources and nuclear having an extremely low carbon intensity of less than 10 gCO₂/k Wh ( even when factoring in their construction ), whereas fossil fuels have very high carbon intensity of approximately ₂00–400 gCO₂/k Wh.

The majority of electricity is produced by national or state grids, where different levels of carbon intensity are combined with energy from a variety of sources. The distributed nature of the internet means that a single user of a website or app might be using energy from multiple different grids simultaneously, a website user in Paris uses electricity from the French national grid to power their home internet and devices, but the website’s data center could be in Dallas, USA, pulling electricity from the Texas grid, while the telecoms networks use energy from everywhere between Dallas and Paris.

Although we don’t have complete control over the energy supply of web services, we do have some control over where our projects are hosted. With a data center using a significant proportion of the energy of any website, locating the data center in an area with low carbon energy will tangibly reduce its carbon emissions. Danish startup Tomorrow reports and maps the user-provided data, and a look at their map demonstrates how, for instance, choosing a data center in France will have significantly lower carbon emissions than choosing a data center in the Netherlands ( Fig. 2.3 ).

However, we don’t want to move our servers too far away from our users because it requires energy to transmit data through the telecom’s networks, and the more energy is used. Just like food miles, we can think of the distance from the data center to the website’s core user base as “megabyte miles” —and we want it to be as small as possible.

We can use website analytics to determine the country, state, or even city where our core user group is located and determine the distance between that location and the data center that our hosting company uses as a benchmark. This will be a somewhat fuzzy metric as we don’t know the precise center of mass of our users or the exact location of a data center, but we can at least get a rough idea.

For instance, if a website is hosted in London but the main audience is on the United States ‘ West Coast, we could look up the travel distance between London and San Francisco, which is 5,300 miles. That’s a long way! We can see how significantly lessening the distance and energy needed to transmit the data would be if it was hosted somewhere in North America, ideally on the West Coast. In addition, locating our servers closer to our visitors helps reduce latency and delivers better user experience, so it’s a win-win.

Reverting it to carbon emissions

If we combine carbon intensity with a calculation for energy consumption, we can calculate the carbon emissions of our websites and apps. The method my team developed converts the amount of electricity transferred when loading a web page into a CO₂ figure ( Fig. ₂.4), and then converts that data into a figure for the tool. It also factors in whether or not the web hosting is powered by renewable energy.

The Energy and Emissions Worksheet that comes with this book teaches you how to take it one step further and tailor the data more precisely to the unique aspects of your project.

We could even expand our page weight budget by establishing carbon budgets as well with the ability to calculate carbon emissions for our projects. CO₂ is not a metric commonly used in web projects, we’re more familiar with kilobytes and megabytes, and can fairly easily look at design options and files to assess how big they are. Although translating that into carbon adds an air of abstraction, carbon budgets do focus our minds on the main issue we’re trying to reduce, which also supports the main goal of sustainable web design: reducing carbon emissions.

Browser Energy

Transfer of data might be the simplest and most complete analog for energy consumption in our digital projects, but by giving us one number to represent the energy used in the data center, the telecoms networks, and the end user’s devices, it can’t offer us insights into the efficiency in any specific part of the system.

One part of the system we can look at in more detail is the energy used by end users ‘ devices. The computational load is increasingly shifting from the data center to users ‘ devices, whether they are phones, tablets, laptops, desktops, or even smart TVs, as front-end web technologies advance. Modern web browsers allow us to implement more complex styling and animation on the fly using CSS and JavaScript. Additionally, JavaScript libraries like Angular and React make it possible to create applications where the” thinking” process is performed either partially or completely in the browser.

All of these advances are exciting and open up new possibilities for what the web can do to serve society and create positive experiences. However, more computation in a web browser requires more energy to be used by the user’s devices. This has implications not just environmentally, but also for user experience and inclusivity. Applications that put a lot of processing power on a user’s device unintentionally exclude users with older, slower devices and make the batteries on phones and laptops drain more quickly. Furthermore, if we build web applications that require the user to have up-to-date, powerful devices, people throw away old devices much more frequently. This not only hurts the environment, but it also places a disproportionate financial burden on society’s poorest.

In part because the tools are limited, and partly because there are so many different models of devices, it’s difficult to measure website energy consumption on end users ‘ devices. The Energy Impact monitor inside the developer console of the Safari browser is one of the tools we currently have ( Fig. 2.5 ).

You know when your computer’s cooling fans start spinning so frantically that you suspect it might take off when you load a website? That’s essentially what this tool is measuring.

It uses these figures to create an energy impact rating and shows how much CPU is used and how long it takes to load the web page. It doesn’t give us precise data for the amount of electricity used in kilowatts, but the information it does provide can be used to benchmark how efficiently your websites use energy and set targets for improvement.

This section will provide you with that plan of action. It covers how to incorporate safety principles into your design work in order to make tech that’s secure, how to persuade your stakeholders that this work is important, and how to respond to the critique that what we really need is more diversity. ( Spoiler: we do, but diversity alone is not the solution to fixing unethical, unsafe technology. )

The method for equitable safety

Your objectives when designing for protection are as follows:

• discover ways your solution can be used for abuse,
• style ways to prevent the maltreatment, and
• offer assistance for harmed people to regain control and power.

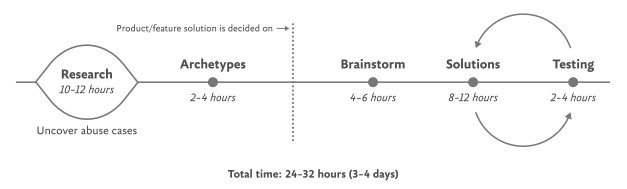

The Process for Inclusive Safety is a tool to help you reach those goals ( Fig 5.1 ). It’s a method I developed in 2018 to better understand the different methods I used to create products that were designed with safety in mind. Whether you are creating an entirely new product or adding to an existing element, the Process can help you produce your product secure and diverse. The Process includes five public areas of action:

• conducting studies
• Creating tropes
• pondering issues
• Designing options
• Testing for health

It is intended to be flexible, so teams might not want to apply every action in all circumstances. Use the parts that are related to your special function and environment, this is meant to be something you can put into your existing style process.

And once you use it, if you have an idea for making it better or simply want to give perspective of how it helped your staff, please get in touch with me. It’s a living document, and I want to use it as a practical and useful application for engineers in their day-to-day tasks.

If you’re working on a product especially for a resilient team or survivors of some form of injury, such as an application for survivors of domestic violence, sexual abuse, or drug addiction, be sure to read Section 7, which covers that position directly and should be handled a bit different. The principles set forth here are for putting safety first when designing a more general product with a broad user base ( which, as we already know from statistics, will include some groups that should be protected from harm ). Chapter 7 is focused on products that are specifically for vulnerable groups and people who have experienced trauma.

Step 1: Conduct research

A thorough analysis of how your technology might be used to abuse people as well as a detailed analysis of the experiences of those who have survived and perpetrated that kind of abuse should be included in the design research. At this stage, you and your team will investigate issues of interpersonal harm and abuse, and explore any other safety, security, or inclusivity issues that might be a concern for your product or service, like data security, racist algorithms, and harassment.

broad analysis

Your project should begin with broad, general research into similar products and issues around safety and ethical concerns that have already been reported. For example, a team building a smart home device would do well to understand the multitude of ways that existing smart home devices have been used as tools of abuse. If your product involves artificial intelligence, be aware of the potential for racism and other issues that have been reported in other AI products. Nearly all types of technology have some kind of potential or actual harm that’s been reported on in the news or written about by academics. Google Scholar is a useful resource for locating these studies.

Specific research: Survivors

When possible and appropriate, include direct research ( surveys and interviews ) with people who are experts in the forms of harm you have uncovered. In order to have a better understanding of the subject and be better positioned to prevent retraumatize survivors, you should interview advocates working in the area of your research first. If you’ve uncovered possible domestic violence issues, for example, the experts you’ll want to speak with are survivors themselves, as well as workers at domestic violence hotlines, shelters, other related nonprofits, and lawyers.

It is important to pay people for their knowledge and lived experiences, especially when interviewing survivors of any kind of trauma. Don’t ask survivors to share their trauma for free, as this is exploitative. While some survivors may not want to be paid, you should always make the offer in the initial ask. As an alternative to paying, you can donate to a group fighting against the violence the interviewee experienced. We’ll talk more about how to appropriately interview survivors in Chapter 6.

Abusers specifically: research

It’s unlikely that teams aiming to design for safety will be able to interview self-proclaimed abusers or people who have broken laws around things like hacking. Don’t make this a goal, rather, try to get at this angle in your general research. Attempt to understand how abusers or bad actors use technology to harm others, how they use it against others, and how they justify or explain the abuse.

Step 2: Create archetypes

Use your research after you’ve finished conducting it to create abuser and survivor archetypes. Archetypes are not personas, as they’re not based on real people that you interviewed and surveyed. Instead, they’re based on your research into likely safety issues, much like when we design for accessibility: we don’t need to have found a group of blind or low-vision users in our interview pool to create a design that’s inclusive of them. Instead, we base those designs on already-existing research to satisfy the requirements of this audience. Personas typically represent real users and include many details, while archetypes are broader and can be more generalized.

The abuser archetype is someone who views a product as a means of harm ( Fig. 5.2 ). They may be trying to harm someone they don’t know through surveillance or anonymous harassment, or they may be trying to control, monitor, abuse, or torment someone they know personally.

The survivor archetype refers to a person who is being abused with the product. There are various situations to consider in terms of the archetype’s understanding of the abuse and how to put an end to it: Do they need proof of abuse they already suspect is happening, or are they unaware they’ve been targeted in the first place and need to be alerted ( Fig 5.3 )?

You may want to make multiple survivor archetypes to capture a range of different experiences. They may be aware of the abuse is occurring but not be able to stop it, such as when a stalker keeps figuring out where they are from ( Fig. 5.4), or they may be aware that it is happening but are unable to stop it ( such as when an abuser locks them out of IoT devices ). Include as many of these scenarios as you need to in your survivor archetype. These suggestions will be used later when creating solutions to assist your survivor archetypes in achieving their objectives of preventing and ending abuse.

It may be useful for you to create persona-like artifacts for your archetypes, such as the three examples shown. Focus on their objectives rather than the demographic details we frequently see in personas. The goals of the abuser will be to carry out the specific abuse you’ve identified, while the goals of the survivor will be to prevent abuse, understand that abuse is happening, make ongoing abuse stop, or regain control over the technology that’s being used for abuse. Later, you’ll think about how to help the survivor’s goals and the abuser’s goals.

And while the “abuser/survivor” model fits most cases, it doesn’t fit all, so modify it as you need to. For example, if you uncovered an issue with security, such as the ability for someone to hack into a home camera system and talk to children, the malicious hacker would get the abuser archetype and the child’s parents would get survivor archetype.

3. Brainstorming issues

After creating archetypes, brainstorm novel abuse cases and safety issues. You’re trying to identify entirely new safety issues that are unique to your product or service by using the term” Novel” in terms of things that are not discovered in your research. The goal with this step is to exhaust every effort of identifying harms your product could cause. You aren’t worrying about how to prevent the harm yet—that comes in the next step.

What other abuses could your product be used for besides what you’ve already discovered through your research? I recommend setting aside at least a few hours with your team for this process.

Try conducting a Black Mirror brainstorming if you’re looking for a place to start. This exercise is based on the show Black Mirror, which features stories about the dark possibilities of technology. Try to figure out how your product would be used in an episode of the show—the most wild, awful, out-of-control ways it could be used for harm. Participants in Black Mirror brainstorming typically end up having a lot of fun ( which I believe is great because having fun when designing for safety! ). I recommend time-boxing a Black Mirror brainstorm to half an hour, and then dialing it back and using the rest of the time thinking of more realistic forms of harm.

You may still not feel confident that you have found every possible source of harm after identifying as many opportunities for abuse as possible. A healthy amount of anxiety is normal when you’re doing this kind of work. It’s common for teams designing for safety to worry,” Have we really identified every possible harm? What if something is missing, then? If you’ve spent at least four hours coming up with ways your product could be used for harm and have run out of ideas, go to the next step.

It’s impossible to say 100 % assurance that you’ve done everything, but instead of aiming for 100 %, acknowledge that you’ve done it and will continue to prioritize safety in the future. Once your product is released, your users may identify new issues that you missed, aim to receive that feedback graciously and course-correct quickly.

Step 4: Design solutions

You should now be aware of the ways your product can be used for harm as well as survivor and abuser archetypes describing opposing user objectives. The next step is to identify ways to design against the identified abuser’s goals and to support the survivor’s goals. This is a good addition to existing areas of your design process where you’re making recommendations for solutions to the various issues your research has identified.

Some questions to ask yourself to help prevent harm and support your archetypes include:

• Can you design your product in such a way that the identified harm cannot happen in the first place? If not, what barriers can you place to stop the harm from occurring?
• How can you make the victim aware that abuse is happening through your product?
• How can you assist the victim in understanding what they need to do to stop the problem?
• Can you identify any types of user activity that would indicate some form of harm or abuse? Could your product help the user access support?

It’s possible to anticipate harm from occurring in some products. For example, a pregnancy app might be modified to allow the user to report that they were the victim of an assault, which could trigger an offer to receive resources for local and national organizations. Although it’s not always possible to be this proactive, it’s worthwhile to spend an hour discussing whether any kind of user activity would indicate harm or abuse and how your product could help them in a secure manner.

That said, use caution: you don’t want to do anything that could put a user in harm’s way if their devices are being monitored. If you do offer some kind of proactive help, always make it voluntary, and think through other safety issues, such as the need to keep the user in-app in case an abuser is checking their search history. In the next chapter, we’ll walk through a good illustration of this.

Step 5: Test for safety

The final step is to evaluate your prototypes from the perspective of your archetypes, who wants to harm the product and the victim of the harm who needs to regain control over the technology. Just like any other kind of product testing, at this point you’ll aim to rigorously test out your safety solutions so that you can identify gaps and correct them, validate that your designs will help keep your users safe, and feel more confident releasing your product into the world.

Ideally, safety testing happens along with usability testing. If you work for a company that doesn’t conduct usability testing, you might be able to use safety testing to deftly perform both. A user who uses your design while trying to use it against someone else can also be encouraged to point out interactions or other design details that don’t make sense.

You’ll want to conduct safety testing on either your final prototype or the actual product if it’s already been released. There is no harm in testing an existing product that wasn’t created with safety goals in mind right away; “etrofitting” it for safety is a wise thing to do.

Remember that testing for safety involves testing from the perspective of both an abuser and a survivor, though it may not make sense for you to do both. Alternatively, if you made multiple survivor archetypes to capture multiple scenarios, you’ll want to test from the perspective of each one.

You as the designer are most likely too closely connected to the product and its design at this point, just like other types of usability testing, and you know the product too well. Instead of doing it yourself, set up testing as you would with other usability testing: find someone who is not familiar with the product and its design, set the scene, give them a task, encourage them to think out loud, and observe how they attempt to complete it.

Abuse testing

The goal of this testing is to understand how easy it is for someone to weaponize your product for harm. Unlike with usability testing, you want to make it impossible, or at least difficult, for them to achieve their goal. Use your product to try to accomplish the objectives in the abuser archetype you created earlier.

For example, for a fitness app with GPS-enabled location features, we can imagine that the abuser archetype would have the goal of figuring out where his ex-girlfriend now lives. With this in mind, you’d make every effort to discover the location of a different user who has their privacy settings in place. You might try to see her running routes, view any available information on her profile, view anything available about her location ( which she has set to private ), and investigate the profiles of any other users somehow connected with her account, such as her followers.

If by the end of this you’ve managed to uncover some of her location data, despite her having set her profile to private, you know now that your product enables stalking. Reverting to step 4 and figuring out how to stop this from occurring is your next step. You may need to repeat the process of designing solutions and testing them more than once.

Testing for Survivors

Testing for Survivors involves identifying how to give information and power to the survivor. It might not always make sense based on the product or context. Thwarting the attempt of an abuser archetype to stalk someone also satisfies the goal of the survivor archetype to not be stalked, so separate testing wouldn’t be needed from the survivor’s perspective.

However, there are cases where it makes sense. A survivor archetype’s goal, for instance, would be to discover what causes the temperature change when they aren’t altering it themselves. You could test this by looking for the thermostat’s history log and checking for usernames, actions, and times, if you couldn’t find that information, you would have more work to do in step 4.

Another goal might be regaining control of the thermostat once the survivor realizes the abuser is remotely changing its settings. Are there any instructions that explain how to remove a user and change the password, and are they simple to find? For your test, you would need to try to figure out how to do this. This might again reveal that more work is needed to make it clear to the user how they can regain control of the device or account.

Stress testing

To make your product more inclusive and compassionate, consider adding stress testing. This concept comes from Design for Real Life by Eric Meyer and Sara Wachter-Boettcher. The authors noted that personas typically focus on happy people, but that happy people are frequently anxious, stressed out, unhappy, or even go through a bad day. These are called” stress cases”, and testing your products for users in stress-case situations can help you identify places where your design lacks compassion. More information about how to incorporate stress cases into your design can be found in Design for Real Life, as well as in many other effective methods for designing with compassion.

But how can a content management system ( CMS ) be set up to reach your current and future audience? I learned the hard way that creating a content model—a concept of information types, attributes, and relationships that let people and systems understand content—with my more comfortable design-system wondering would collapse my patient’s holistic information strategy. By developing conceptual information models that also connect related content, you can avoid that result.

I just had the opportunity to direct the CMS application for a Fortune 500 company. The customer was excited by the benefits of an holistic information plan, including material modify, multichannel marketing, and robot delivery—designing content to be comprehensible to bots, Google knowledge panels, snippets, and voice user interfaces.

A content type is essential to an omnichannel content strategy, and it required conceptual types to be given names that don’t depend on how the content is presented. Our aim was to allow artists to create original content and use it where necessary. But as the job proceeded, I realized that supporting material utilize at the range that my client needed required the whole group to identify a new pattern.

Despite our best efforts, we remained influenced by pattern systems, which we were more comfortable with. An holistic content strategy doesn’t rely on WYSIWYG equipment for design and layout, unlike web-focused material strategies. Our tendency to approach the material model with our common design-system thinking frequently led us to veer away from one of the main purposes of a material model: delivering content to audiences on various marketing channels.

Two fundamental tenets are necessary for a successful content model

We needed to explain to our designers, developers, and stakeholders that we were undertaking a very different task from their earlier web projects, where it was common for everyone to view content as visual building blocks that fit into layouts. The previous approach was not only more familiar but also more intuitive—at least at first—because it made the designs feel more tangible. The team was able to understand how a content model differs from the design systems we were familiar with by discovering two principles:

1. Instead of layout, content models must define semantics.
2. And content models should connect content that belongs together.

Semantic content models

Type and attribute names for semantic content models are used to reflect the content’s intended purpose and not its intended display. For example, in a nonsemantic model, teams might create types like teasers, media blocks, and cards. Although these types might make it simple to present content, they don’t aid in understanding the meaning of the content, which would have opened the door to the content presented in each marketing channel. To allow each delivery channel to comprehend the content and use it as it sees fit, a semantic content model uses type names like product, service, and testimonial.

When you’re creating a semantic content model, a great place to start is to look over the types and properties defined by Schema. a community-driven resource for type definitions that are understandable on platforms like Google search .org

A semantic content model has a number of advantages:

Even if your team doesn’t care about omnichannel content, a semantic content model decouples content from its presentation so that teams can evolve the website’s design without needing to refactor its content. In this way, content can withstand irrational website redesigns.
• A semantic content model also gives you a competitive advantage. By adding structured data based on Schema. A website can provide hints to Google to understand the content, display it in search snippets or knowledge panels, and use it to respond to user voice-interface queries. Potential visitors could access your content without ever walking into your website.
• Beyond those practical benefits, you’ll also need a semantic content model if you want to deliver omnichannel content. Delivery channels must be able to understand the same content in order to use it across multiple marketing channels. For instance, if your content model provided a list of questions and answers, it could be used as a voice interface or by a bot to answer frequently asked questions ( FAQ ) pages.

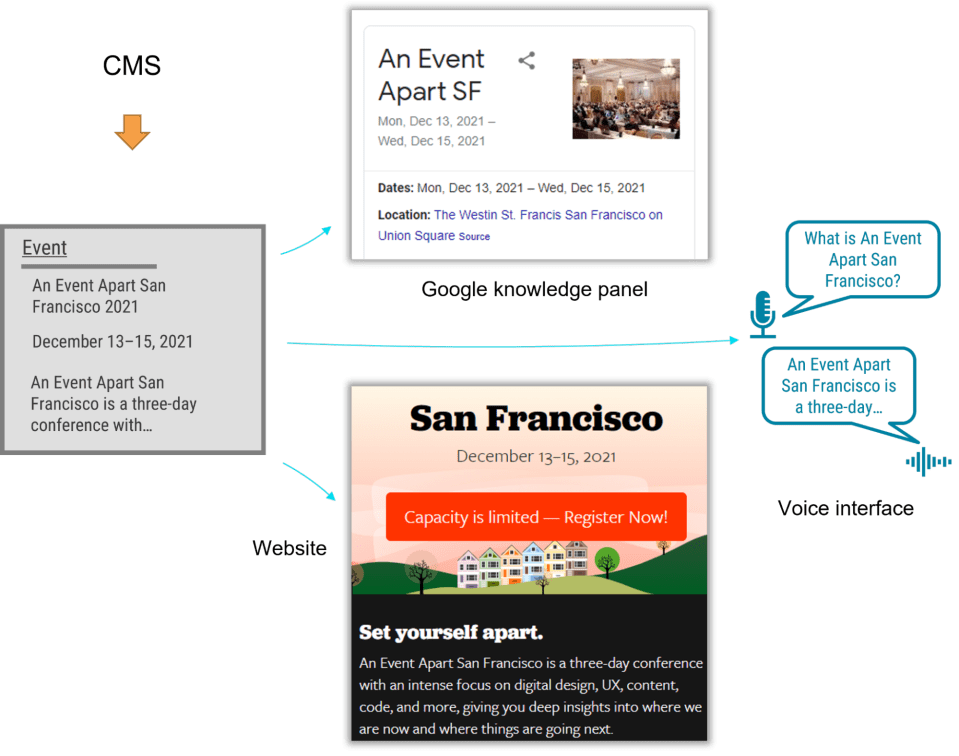

For example, using a semantic content model for articles, events, people, and locations lets A List Apart provide cleanly structured data for search engines so that users can read the content on the website, in Google knowledge panels, and even with hypothetical voice interfaces in the future.

Content models that connect

Instead of slicing up related content across disparate content components, I’ve come to the realization that the best models are those that are semantic and also connect related content components ( such as a FAQ item’s question and answer pair ). A good content model connects content that should remain together so that multiple delivery channels can use it without needing to first put those pieces back together.

Consider creating an essay or article. The meaning and usefulness of an article depend on how well its components are kept together. Would one of the headings or paragraphs be meaningful on their own without the context of the full article? Our well-known design-system thinking on our project frequently led us to want to develop content models that would divide content into distinct chunks to fit the web-centric layout. This had a similar effect to an article that had had its headline removed. Because we were slicing content into standalone pieces based on layout, content that belonged together became difficult to manage and nearly impossible for multiple delivery channels to understand.

Let’s examine how connecting related content can be used in a practical setting to illustrate. A complex layout for a software product page that included multiple tabs and sections was presented by the client’s design team. Our instincts were to follow suit with the content model. Shouldn’t we make adding any number of tabs in the future as simple and flexible as possible?

We felt like we needed a content type called “tab section” because our design-system instincts were so well-known, so that multiple tab sections could be added to a page. Each tab section would display various types of content. One tab might contain the software’s information or specifications. A second tab might provide a list of sources.

Our inclination to break down the content model into “tab section” pieces would have led to an unnecessarily complex model and a cumbersome editing experience, and it would have also created content that couldn’t have been understood by additional delivery channels. How would a different system have been able to determine which “tab section” referred to a product’s specifications or resource list, for instance? Would that system have had to have used tab sections and content blocks to calculate these terms? This would have prevented the tabs from ever being rearranged, and it would have required adding logic to each other delivery channel to interpret the layout of the design system. Furthermore, if the customer were to have no longer wanted to display this content in a tab layout, it would have been tedious to migrate to a new content model to reflect the new page redesign.

Our customer had a breakthrough when we realized that for each tab, their customer had a specific purpose in mind: it would reveal specific information like the software product’s overview, specifications, related resources, and pricing. Once implementation began, our inclination to focus on what’s visual and familiar had obscured the intent of the designs. It wasn’t long after a little digging that it became clear that the idea of tabs wasn’t applicable to the content model. What was important was the meaning of the information that they intended to display in the tabs.

In fact, the customer could have decided to display this content in a different way—without tabs—somewhere else. Based on the meaningful attributes the customer had desired to display on the web, we created content types for the software product. There were rich attributes like screenshots, software requirements, and feature lists as well as obvious semantic attributes like name and description. The software’s product information stayed together because it wasn’t sliced across separate components like “tab sections” that were derived from the content’s presentation. This content could be understood and presented by any delivery channel, including those that come up in the future.

Conclusion

In this omnichannel marketing project, we discovered that the best way to keep our content model on track was to ensure that it was semantic ( with type and attribute names that reflected the meaning of the content ) and that it kept content together that belonged together ( instead of fragmenting it ). These two ideas made it easier for us to decide what to do with the content model based on the design. Remember: If you’re developing a content model to support an omnichannel content strategy, or even if you just want to make sure Google and other interfaces understand your content, remember:

• A design system isn’t a content model. You should maintain the semantic value and contextual structure of the content strategy throughout the entire implementation process because team members might be tempted to combine them and to make your content model resemble your design system. Without the use of a magic decoder ring, every delivery channel can now consume the content.
• If your team is struggling to make this transition, you can still reap some of the benefits by using Schema. Your website uses structured data from org. The benefit of search engine optimization is a compelling reason on its own, even if additional delivery channels aren’t on the horizon in the near future.
• Additionally, remind the team that decoupling the content model from the design will let them update the designs more easily because they won’t be held back by the cost of content migrations. They will be prepared for the upcoming big thing, and they will be able to create new designs without compromising the compatibility between the content and the design.

By firmly defending these ideas, you’ll help your team view content as the most important component of your user experience and as the most effective way to engage with your audience.

Here’s the strategy. To find stakeholders to determine high-risk assumptions and buried complexity, you must first convince them to do so so that they become just as motivated as you are to receive user-response. Generally, you need to make them think it’s their plan.

By bringing the group up around two straightforward issues, I’ll show you how to collectively introduce alignment and cracks in the team’s shared knowledge.

1. What are the things?
2. What are the associations between those things?

A cross between panel design and analysis

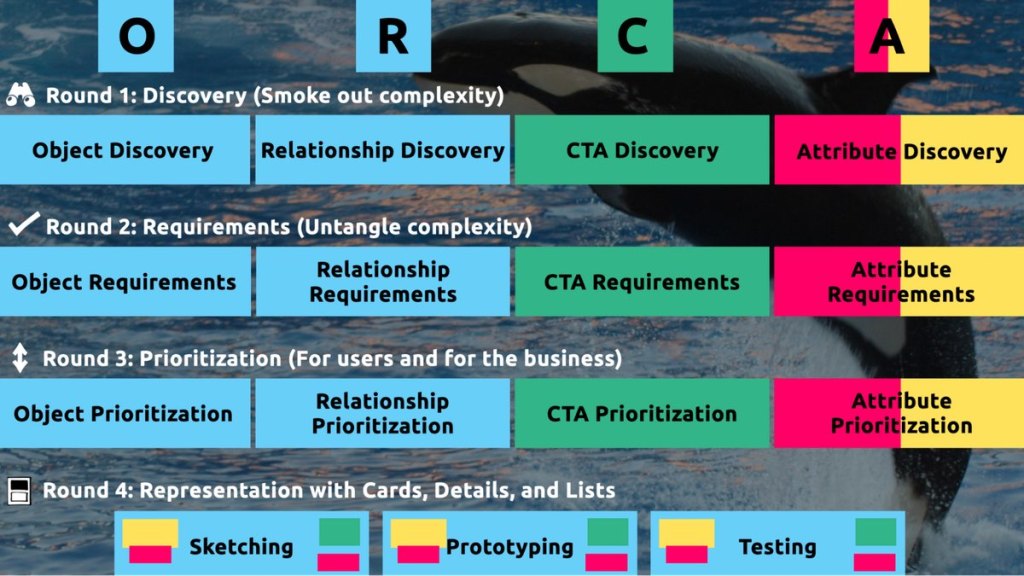

These two issues correlate to the first two methods of the ORCA approach, which may be your new best friend when it comes to reducing speculation. What’s ORCA, waited, what’s that? Glad you asked.

ORCA stands for Things, Relationships, CTAs, and Values, and it outlines a process for creating good object-oriented user experience. My style idea is oriented UX. ORCA is an iterative strategy for synthesizing person study into an elegant fundamental foundation to help monitor and conversation design. My work as a UX designer has become more creative, productive, successful, fun, proper, and meaningful thanks to OOUX and ORCA.

The ORCA process has four iterative rounds and a whopping fifteen steps. In each round we get more clarity on our Os, Rs, Cs, and As.

ORCA is sometimes described as a “garbage in, garbage out” procedure. To ensure that the testable prototype produced in the final round actually tests well, the process needs to be fed by good research. The beginning of the ORCA process, however, serves another purpose: it helps you sell the need for research if you don’t have a ton of research.

In other words, the ORCA process serves as a gauntlet between research and design. You can gracefully ride the killer whale from research to design with good research. But without good research, the process effectively spits you back into research and with a cache of specific open questions.

Getting back in the same curiosity-boat

What gets us into trouble is not what we don’t know. It’s what we know for sure that just ain’t so.

Mark Twain

The first two steps of the ORCA process—Object Discovery and Relationship Discovery—shine a spotlight on the dark, dusty corners of your team’s misalignments and any inherent complexity that’s been swept under the rug. It begins to reveal what this timeless comic so skillfully demonstrates:

This is one reason why so many UX designers are frustrated in their job and why many projects fail. Every decision-maker is confident in their own mental picture, which is another reason why we frequently can’t sell research.

Once we expose hidden fuzzy patches in each picture and the differences between them all, the case for user research makes itself.

However, how we go about doing this is crucial. However much we might want to, we can’t just tell everyone,” YOU ARE WRONG”! Instead, we need to facilitate and guide our team members to self-identify holes in their picture. When stakeholders accept responsibility for their beliefs and understanding gaps, BAM! Suddenly, UX research is not such a hard sell, and everyone is aboard the same curiosity-boat.

Let’s say your users are physicians. And you have no idea how doctors use the system you are tasked with redesigning.

You might try to sell research by honestly saying:” We need to understand doctors better! What bothers them the most? How do they use the current app”? Here’s the issue with that, though. Those questions are vague, and the answers to them don’t feel acutely actionable.

Instead, you want your stakeholders themselves to ask super-specific questions. This conversation is more similar to what you need to facilitate. Let’s listen in:

” Wait a sec, how frequently do doctors share patients?” Does a patient in this system have primary and secondary doctors”?

” Can a patient even have more than one primary doctor”?

Is it a “primary doctor” or just a “primary caregiver” ?Can’t that position be considered a nurse practitioner?

” No, caregivers are something else… That’s the patient’s family contacts, right”?

” So are caregivers in this redesign’s scope”?

” Yeah, because if a caregiver is present at an appointment, the doctor needs to note that. Like, tag the caregiver on the note… Or on the appointment”?

We are currently traveling somewhere. Do you see how powerful it can be getting stakeholders to debate these questions themselves? The diabolical goal is to gently and diplomatically shake their confidence.

When these kinds of questions bubble up collaboratively and come directly from the mouths of your stakeholders and decision-makers, suddenly, designing screens without knowing the answers to these questions seems incredibly risky, even silly.

If we create software without understanding the real-world information environment of our users, we will likely create software that does not align to the real-world information environment of our users. And most likely as a result of this, software will be more confusing, complicated, and less intuitive.

The two questions

But how do we approach these kinds of contentious inquiries diplomatically, effectively, collaboratively, and reliably?

We can do this by starting with those two big questions that align to the first two steps of the ORCA process:

1. What are the things?
2. What are the associations between those things?

In practice, getting to these answers is easier said than done. I’m going to demonstrate how an Object Definition Workshop can be organized using these two straightforward questions. During this workshop, these” seed” questions will blossom into dozens of specific questions and shine a spotlight on the need for more user research.

Work in preparation: Noun for foraging

In the next section, I’ll show you how to run an Object Definition Workshop with your stakeholders ( and entire cross-functional team, hopefully ). But first, you need to do some prep work.

In essence, search for nouns that are specific to your project’s business or industry and from at least a few sources. I call this noun foraging.

Just a few excellent noun foraging sources can be found here:

• the product’s marketing site
• the product’s competitors ‘ marketing sites ( competitive analysis, anyone? )
• the labeled version of the already-existing product!
• user interview transcripts
• notes from interviews with stakeholders or vision documents from stakeholders

Put your detective hat on, my dear Watson. Get resourceful and leverage what you have. Use those if all you have is a marketing website, some screenshots of the current legacy system, and access to customer service chat logs.

As you peruse these sources, watch for the nouns that are used over and over again, and start listing them ( preferably on blue sticky notes if you’ll be creating an object map later! …

You’ll want to focus on nouns that might represent objects in your system. If you are having trouble determining if a noun might be object-worthy, remember the acronym SIP and test for:

1. Structure
2. Instances
3. Purpose

Consider, for instance, a library app. Is “book” an object?

Can you think of a few attributes for this potential object? Title, author, publish date … Yep, it has structure. Check!

What are some instances of this conceivable “book” object? Can you name a few? Check out The Alchemist, Ready Player One, and Everybody Poops!

Purpose: why is this object important to the users and business? Well, “book” is what our library client is providing to people and books are why people come to the library … Check, check, check!

Concentrate on capturing the nouns with SIP as you go noun foraging. Avoid capturing components like dropdowns, checkboxes, and calendar pickers—your UX system is not your design system! Components are just the packaging for objects—they are a means to an end. No one is visiting your digital location to play with your dropdown! They are coming for the VALUABLE THINGS and what they can do with them. We are attempting to identify those things or objects.

Let’s say we work for a startup disrupting the email experience. This is how I’d start my noun foraging.

I’d like to take a look at my own email client, which turns out to be Gmail. I’d then look at Outlook and the new HEY email. I would examine Hotmail, Yahoo, and even Basecamp and other’email replacers’. I’d read some articles, reviews, and forum threads where people are complaining about email. While doing all this, I would look for and write down the nouns.

( Before moving on, feel free to go noun foraging for this fictitious product as well, and then scroll down to see how closely our lists correspond. Just don’t get lost in your own emails! Rejoice back to me!

Drumroll, please…

Here are a few nouns I came up with during my noun foraging:

• email message
• thread
• contact
• client
• rule/automation
• email address that is not a contact?
• contact groups
• attachment
• Google doc file / other integrated file
• newsletter? ( HEY views this in a different way )
• saved responses and templates

Scan your list of nouns and pick out words that you are completely clueless about. It might be a client or automation in our email example. Do as much homework as you can before your session with stakeholders: google what’s googleable. But other terms might be so specific to the product or domain that you need to have a conversation about them.

Aside: Here are some real nouns that I needed my stakeholders to understand during my own past project work:

• Record Locator
• Home Incentive
• Augmented Line Item
• Curriculum-Based Measurement Probe

A list of nouns that represent potential objects and a short list of nouns that need to be further defined are really all you need to prepare for the workshop session.

Facilitate an Object Definition Workshop

Noun foraging can be used as a starting point for your workshop; it can be done in concert. If you have five people in the room, pick five sources, assign one to every person, and give everyone ten minutes to find the objects within their source. When the time’s up, come together and find the overlap. Your friend here is affinity mapping!

If your team is short on time and might be reluctant to do this kind of grunt work ( which is usually the case ) do your own noun foraging beforehand, but be prepared to show your work. I enjoy showing screenshots of documents and screens with all the highlighted nouns. Bring the artifacts of your process, and start the workshop with a five-minute overview of your noun foraging journey.

HOT TIP: before jumping into the workshop, frame the conversation as a requirements-gathering session to help you better understand the scope and details of the system. You don’t need to tell them you‘re looking for gaps in the team’s understanding so that you can demonstrate the need for more user research; that will be our little secret. Instead, go into the session optimistically, as if your knowledgeable stakeholders and PMs and biz folks already have all the answers.

Let the whack-a-mole question then start.

1. What is this thing?

Want to have some genuine fun? At the beginning of your session, ask stakeholders to privately write definitions for the handful of obscure nouns you might be uncertain about. Have everyone then show their cards at once, and see if there are any variations (you will ). This is gold for exposing misalignment and starting great conversations.

As your discussion unfolds, capture any agreed-upon definitions. And when uncertainty strikes, ostensibly start an “open questions” parking lot. � �

Here’s a fantastic follow-up to solidify definitions:

2. Do our users know what these things are? What is the name of this object?

Stakeholder 1: They probably call email clients “apps”. But I’m not certain.

Stakeholder 2: Automations are often called “workflows”, I think. Or, maybe users think workflows are something different.

Ask the group if they can agree to use only that term as they go along if a more user-friendly term comes up. This way, the team can better align to the users ‘ language and mindset.

Okay, let’s get started.

If you have two or more objects that seem to overlap in purpose, ask one of these questions:

3. Do they share the same name? Or are these different? If they are different, how are they different?

You: Is a saved response the same as a template?

Stakeholder 1: Yes! Without a doubt.

Stakeholder 2: I don’t think so… A saved response is text with links and variables, but a template is more about the look and feel, like default fonts, colors, and placeholder images.

Continually expand your expanding glossary of terms. And continue to capture areas of uncertainty in your “open questions” parking lot.

If you successfully determine that two similar things are, in fact, different, here’s your next follow-up question:

4. What’s the relationship between these objects?

You: Do saved responses and templates have any connection to each other?

Stakeholder 3: Yeah, a template can be applied to a saved response.

You, always with the follow-ups: When is the template applied to a saved response? When a user is creating a saved response, does that occur? Or when they apply the saved response to an email? What is the process behind that?

Listen. Capture uncertainty. When the number of “open questions” reaches a critical mass, pause and begin asking questions of groups or individuals. Some questions might be for the dev team ( hopefully at least one developer is in the room with you ). One question might be specific for someone who was unable to attend the workshop. And many questions will need to be labeled “user”.

Do you see how we are building up to our UXR sales pitch?

5. Is this object in scope?

Your next query makes the team’s attention narrower so that it can focus on what your users are most interested in. You can simply ask,” Are saved responses in scope for our first release”?, but I’ve got a better, more devious strategy.

By now, you should have a list of clearly defined objects. Ask participants to order these items either in small breakout groups or separately from the most important. Then, like you did with the definitions, have everyone reveal their sort order at once. Unsurprisingly, it’s not unusual for the VP to place something like” saved responses” at the top of the list while everyone else places it at the bottom. Try not to look too smug as you inevitably expose more misalignment.

I did this for a startup a few years ago. The three groups ‘ wildly different sorting patterns were displayed on the whiteboard.

The CEO nodded his head and said,” This is why we haven’t been able to move forward in two years,” taking a step back.

Admittedly, it’s tragic to hear that, but as a professional, it feels pretty awesome to be the one who facilitated a watershed realization.

Once you have a good idea of in-scope, clearly defined things, this is when you move on to doing more relationship mapping.

6. Create a visual representation of the objects ‘ relationships

We’ve already tried to figure out what two things are different, but this time, we wanted to ask the team about every possible relationship. For each object, ask how it relates to all the other objects. In what ways are the objects connected? Pull out your trusted boxes-and-arrows technique to visualize all the connections. Here, we are connecting our objects with verbs. I prefer to use simple statements like “has a” and “has many.”

This system modeling activity brings up all sorts of new questions:

• Can attachments be included in a saved response?
• Can a saved response use a template? Can the user override a template in an email that has been saved as a template?
• Do users want to see all the emails they sent that included a particular attachment? For example,” show me all the emails I sent with ProfessionalImage. attached .jpg I’ve changed my professional photo and I want to alert everyone to update it”.

The workshop participants might provide solid responses directly. Great! Capture that new shared understanding. However, keep adding questions to your expanding parking lot as uncertainty arises.

Light the fuse

You’ve set up the explosives strategically along the floodgates. Now you simply have to light the fuse and BOOM. Watch the buy-in for user research flooooow.

Have the group reflect on the list of open questions before the workshop ends. Make plans for getting answers internally, then focus on the questions that need to be brought before users.

Your final step is now. Take those questions you’ve compiled for user research and discuss the level of risk associated with NOT answering them. Ask, “if we design without an answer to this question, if we make up our own answer and we are wrong, how bad might that turn out”?

With this approach, we are making our decision-makers fight for user research because they themselves define questions as high-risk. Sorry, not sorry.

Your moment of truth is right now. With everyone in the room, ask for a reasonable budget of time and money to conduct 6–8 user interviews focused specifically on these questions.

HOT TIP: if you are new to UX research, please note that you’ll likely need to rephrase the questions that came up during the workshop before you present them to users. Make sure your questions are non-ending and don’t force the user to choose any default responses.

Final words: Hold the screen design!

Seriously, if at all possible, if you never design screens again without first addressing these fundamental inquiries: what are the objects and how do they relate?

I promise you this: if you can secure a shared understanding between the business, design, and development teams before you start designing screens, you will have less heartache and save more time and money, and ( it almost feels like a bonus at this point! ) users will be more receptive to what you put out into the world.

I sincerely hope this will give you the time and money to spend talking to your users and getting a clear understanding of what you are designing before you begin creating screens. If you find success using noun foraging and the Object Definition Workshop, there’s more where that came from in the rest of the ORCA process, which will help prevent even more late-in-the-game scope tugs-of-war and strategy pivots.

Wish you the best of luck! Now go sell research!

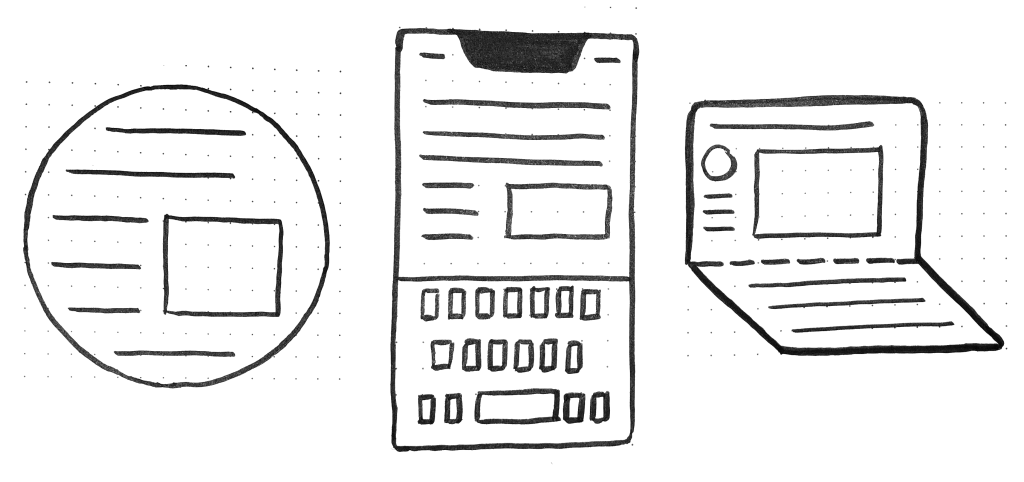

CSS is all about appearance containers. In fact, the whole website is made of containers, from the website viewport to components on a webpage. However, there are times when we have a fresh element that forces us to reevaluate our design strategy.

Square features, for instance, make it fun to play with round picture areas. Mobile display holes and electronic keyboards offer issues to best manage content that stays clear of them. Additionally, dual-screen or portable devices force us to consider how to make the most of the available room in various device configurations.

These latest changes to the online platform have made it both more challenging and fascinating to design items. They’re wonderful opportunities for us to break out of our triangular containers.

I’d like to talk about a new feature similar to the above: the Window Controls Overlay for Progressive Web Apps ( PWAs ).

Democratic Web Apps are bridging the gap between websites and apps. They combine the best of both worlds. On the one hand, they’re flexible, linkable, and stable, just like sites. On the other hand, they provide more effective features, work online, and read documents just like local apps.

As a style area, PWAs are really exciting because they challenge us to think about what mixing online and device-native user interface can get. We have more than 40 years of experience telling us what software may look like, especially on desktop computers, and it can be challenging to get out of this psychological design.

At the end of the day though, PWAs on desktops are constrained to the glass they appear in: a square with a name bar at the top.

What does a standard desktop PWA app look like:

Sure, as the author of a PWA, you get to choose the color of the title bar (using the Web Application Manifest theme_color house ), but that’s about it.

What if we could assume differently and regain the full glass of the app? Doing so would give us a chance to create our programs more wonderful and feel more included in the operating system.

The Window Controls Overlay offers precisely this. This innovative PWA operation makes it possible to take advantage of the full floor area of the app, including where the name bar usually appears.

About the subject bar and glass controls

Let’s get started with an explanation of the screen and name table settings.

The title bar is the place displayed at the top of an game windows, which frequently contains the phone’s name. The buttons or buttons that are displayed at the top of an app’s window are the ones that allow it to decrease, maximize, or close its window.

Window Controls Overlay removes the natural barrier of the name bar and windows controls areas. The title bar and glass control buttons can be overlayed on top of the user’s internet material, allowing it to free up the entire height of the game window.

If you are reading this article on a desktop computer, take a quick look at other apps. Chances are they’re already doing something similar to this. The top area of the page is used by the web browser you’re using to read this, in fact.

Spotify’s application window’s top edge is where the album artwork appears.

Microsoft Word uses the available title bar space to display the auto-save and search functionalities, and more.

The whole point of this feature is to allow you to make use of this space with your own content while providing a way to account for the window control buttons. And it makes it possible to offer this modified experience across a variety of platforms without having a negative impact on browsers or other devices that don’t support Window Controls Overlay. After all, PWAs are all about progressive enhancement, so this feature is a chance to enhance your app to use this extra space when it’s available.

Let’s use the feature.

For the rest of this article, we’ll be working on a demo app to learn more about using the feature.

The demo app is called 1DIV. Users can create designs using CSS and a single HTML element in a simple CSS playground.

The app has two pages. The first lists the CSS designs you’ve already created:

The second page enables you to create and edit CSS designs:

We can install the app as a PWA on desktop because I added a straightforward web manifest and service worker. Here is what it looks like on macOS:

And on Windows:

Our app is looking good, but the white title bar in the first page is wasted space. It would be really nice if the design area extended to the top of the app window on the second page.

Let’s use the Window Controls Overlay feature to improve this.

Enabling Window Controls Overlay

The feature is still experimental at the moment. To try it, you need to enable it in one of the supported browsers.

It has currently been implemented in Chromium as a result of a collaboration between Microsoft and Google. We can therefore use it in Chrome or Edge by going to the internal about: //flags page, and enabling the Desktop PWA Window Controls Overlay flag.

Using Window Controls Overlay

To use the feature, we need to add the following display_override member to our web app’s manifest file:

{ "name": "1DIV", "description": "1DIV is a mini CSS playground", "lang": "en-US", "start_url": "/", "theme_color": "#ffffff", "background_color": "#ffffff", "display_override": [ "window-controls-overlay" ], "icons": [ ... ]}

On the surface, the feature is really simple to use. The only thing required is for this manifest change to transform the window controls into an overlay and make the title bar disappear.

However, to provide a great experience for all users regardless of what device or browser they use, and to make the most of the title bar area in our design, we’ll need a bit of CSS and JavaScript code.

Here is how the app currently looks:

Our logo, search field, and NEW button are now partially obscured by the window controls because our layout now begins at the top of the window, which is what we wanted.

It’s similar on Windows, with the difference that the close, maximize, and minimize buttons appear on the right side, grouped together with the PWA control buttons:

Using CSS to keep clear of the window controls

New CSS environment variables have also been introduced along with the feature:

• titlebar-area-x
• titlebar-area-y
• titlebar-area-width
• titlebar-area-height

You use these variables with the CSS env ( ) function to position your content where the title bar would have been while ensuring it won’t overlap with the window controls. In our case, we’ll position our header, which includes the logo, search bar, and NEW button, using two of the variables.

header { position: absolute; left: env(titlebar-area-x, 0); width: env(titlebar-area-width, 100%); height: var(--toolbar-height);}

The titlebar-area-x variable gives us the distance from the left of the viewport to where the title bar would appear, and titlebar-area-width is its width. (Remember, this is not equivalent to the width of the entire viewport, just the title bar portion, which as noted earlier, doesn’t include the window controls.)

By doing this, we make sure our content remains fully visible. We’re also defining fallback values (the second parameter in the env() function) for when the variables are not defined (such as on non-supporting browsers, or when the Windows Control Overlay feature is disabled).

Now our header adapts to its surroundings, and it doesn’t feel like the window control buttons have been added as an afterthought. The interface resembles a native app much more.

Changing the window controls background color so it blends in

Now let’s take a closer look at our second page: the CSS playground editor.

Not very good. Our CSS demo area does go all the way to the top, which is what we wanted, but the way the window controls appear as white rectangles on top of it is quite jarring.

We can fix this by changing the app’s theme color. There are several definitions for it:

PWAs can define a theme color in the web app manifest file using the theme_color manifest member. The OS then uses this color in various ways. On desktop platforms, it is used to provide a background color to the title bar and window controls.
• Websites can use the theme-color meta tag as well. It’s used by browsers to customize the color of the UI around the web page. For PWAs, this color can override the manifest theme_color.

In our case, we can set the manifest theme_color to white to provide the right default color for our app. The OS will read this color value when the app is installed and use it to make the window controls background color white. This color works great for our main page with the list of demos.

The theme-color meta tag can be changed at runtime, using JavaScript. So we can do that to override the white with the right demo background color when one is opened.

Here is the function we’ll employ:

function themeWindow(bgColor) { document.querySelector("meta[name=theme-color]").setAttribute('content', bgColor);}

With this in place, we can imagine how using color and CSS transitions can produce a smooth change from the list page to the demo page, and enable the window control buttons to blend in with the rest of the app’s interface.

Dragging the window

Now, getting rid of the title bar entirely does have an important accessibility consequence: it’s much more difficult to move the application window around.

Users can drag and click their way to a sizable area in the title bar, but when using the Window Controls Overlay feature, they are limited to where the control buttons are, and must carefully place their fingers in between these buttons to move the window.

Fortunately, this can be fixed using CSS with the app-region property. This property is, for now, only supported in Chromium-based browsers and needs the -webkit- vendor prefix.

We can use the following to make any feature of the app a drag target for the window:

-webkit-app-region: drag;

It is also possible to explicitly make an element non-draggable:

-webkit-app-region: no-drag;

These choices might be beneficial to us. We can make the entire header a dragging target, but make the search field and NEW button within it non-draggable so they can still be used as normal.

However, because the editor page doesn’t display the header, users wouldn’t be able to drag the window while editing code. Let’s take a different strategy, then. We’ll create another element before our header, also absolutely positioned, and dedicated to dragging the window.

...

.drag { position: absolute; top: 0; width: 100%; height: env(titlebar-area-height, 0); -webkit-app-region: drag;}

With the above code, we’re making the draggable area span the entire viewport width, and using the titlebar-area-height variable to make it as tall as what the title bar would have been. This way, our draggable area is aligned with the window control buttons as shown below.

And, now, to make sure our search field and button remain usable:

header .search,header .new { -webkit-app-region: no-drag;}

Users can click and drag where the title bar used to be using the above code. It is an area that users expect to be able to use to move windows on desktop, and we’re not breaking this expectation, which is good.

Adapting to window resize

It may be useful for an app to know both whether the window controls overlay is visible and when its size changes. The search field, logo, and button would need to be pushed down a little bit if the user made the window very narrow.

The Window Controls Overlay feature comes with a JavaScript API we can use to do this: navigator.windowControlsOverlay.

The API offers three intriguing features:

• navigator.windowControlsOverlay.visiblelets us know whether the overlay is visible.
• navigator.windowControlsOverlay.getBoundingClientRect()lets us know the position and size of the title bar area.
• navigator.windowControlsOverlay.ongeometrychangelets us know when something changes in size or visibility.

Let’s use this to be aware of the size of the title bar area and move the header down if it’s too narrow.

if (navigator.windowControlsOverlay) { navigator.windowControlsOverlay.addEventListener('geometrychange', () => { const { width } = navigator.windowControlsOverlay.getBoundingClientRect(); document.body.classList.toggle('narrow', width < 250); });}

In the example above, we set the narrow class on the body of the app if the title bar area is narrower than 250px. We could do something similar with a media query, but using the windowControlsOverlay API has two advantages for our use case:

• It’s only fired when the feature is supported and used, we don’t want to adapt the design otherwise.
• The title bar area is different for different operating systems, which is great because Mac and Windows have different title bar sizes. Using a media query wouldn’t make it possible for us to know exactly how much space remains.

.narrow header { top: env(titlebar-area-height, 0); left: 0; width: 100%;}

When the window is too small, we can use the above CSS code to move our header down and move the thumbnails down in accordance with this.

Thirty pixels of exciting design opportunities

We were able to convert our simple demo app to something that felt much more connected to desktop devices by using the Window Controls Overlay feature. Something that reaches out of the usual window constraints and provides a custom experience for its users.

In reality, this feature only gives us about 30 more pixels of room and presents challenges when using the window controls. And yet, this extra room and those challenges can be turned into exciting design opportunities.

More devices of all shapes and forms get invented all the time, and the web keeps on evolving to adapt to them. To make it easier for us web authors to integrate more and more fully with those devices, new features are added to the web platform. From watches or foldable devices to desktop computers, we need to evolve our design approach for the web. Nowadays, web building enables us to think outside the rectangular box.

So let’s embrace this. Let’s use the standard technologies already at our disposal, and experiment with new ideas to provide tailored experiences for all devices, all from a single codebase!

You can report bugs to the spec’s repository if you have the chance to try the Window Controls Overlay feature and have feedback on it. It’s still early in the development of this feature, and you can help make it even better. Or you can look at this demo app and its source code, the feature’s existing documentation, or the feature’s existing documentation.

However, we’re still very far from this best.

At the time, I didn’t realize yet how to functionally combine morality. Yes, I did discover some tools in other jobs that had worked well for me, such as using checklists, premise monitoring, and “dark truth” sessions. I was still struggling for time and support, and at best I had only partially achieved a higher ( moral ) quality of design—which is far from my definition of structurally integrated.

I made the decision to investigate deeper the causes of organization that prevent us from practicing regular social style. Today, after much research and experimentation, I believe that I’ve found the code that will let us functionally combine morality. And it’s amazingly easy! However, we must first focus out to understand what we’re up against.

Control the structure

Unfortunately, we’re confined to a capitalist system that encourages consumerism and inequality and is obsessed with the irrationality of infinite expansion. Sea levels, temperature, and our demand for energy continue to rise unquestioned, while the divide between rich and poor continues to increase. Owners expect ever-higher returns on their investments, and firms feel forced to set short-term goals that reflect this. Over the past few years, those goals have transformed our well-meaning human-centered attitude into a potent tool that encourages ever-higher levels of consumption. When we’re working for an organization that pursues “double-digit growth” or “aggressive sales targets” ( which is 99 percent of us ), that’s very hard to resist while remaining human friendly. Yet with our best motives, and despite the fact that we like to claim that we provide solutions for people, we’re a part of the issue.

What can we do to alter this?

We may start by acting on the appropriate level of the system. A system intellectual named Donna H. Meadows after outlined ways to influence a system in order of success. When you apply these to architecture, you get:

You can change figures like functionality results or the number of layout critiques at the lowest level of effectiveness. But none of that may change the direction of a business.
• Similarly, affecting buffers ( such as team budgets ), stocks ( such as the number of designers ), flows ( such as the number of new hires ), and delays ( such as the time that it takes to hear about the effect of design ) won’t significantly affect a company.
• Instead of focusing on feedback loops like control power, employee reputation, or design-system investments, a company can improve its ability to achieve its goals. But that doesn’t alter the goals themselves, which means that the business may also work against your ethical-design ideals.
• Most ethical-design efforts’ current focus is on the exchange of honest techniques, toolkits, articles, conferences, workshops, and other topics. This is also where moral style has remained largely theoretical. We’ve been focusing on the wrong level of the system all this day.
• Consider rules, for instance; they consistently surpass information. There can be commonly accepted guidelines, such as how fund works, or a sprint group’s concept of done. However, illegal laws intended to maintain profits is also smother social design, which are frequently revealed through statements like” the customer didn’t ask for it” or “don’t make it very big.”
• Changing the rules without holding official power is very hard. That’s why the next level is so influential: self-organization. Experimentation, bottom-up initiatives, passion projects, self-steering teams, and other such self-organization techniques all contribute to a company’s resilience and creativity. It’s exactly this diversity of viewpoints that’s needed to structurally tackle big systemic issues like consumerism, wealth inequality, and climate change.
• But objectives and metrics are even more powerful than self-organization. Our companies want to make more money, which means that everything and everyone in the company does their best to… make the company more money. And once I realized that profit is nothing more than a measurement, I understood how crucial a very specific, defined metric can be toward pushing a company in a certain direction.

What is the conclusion? If we truly want to incorporate ethics into our daily design practice, we must first change the measurable objectives of the company we work for, from the bottom up.

Redefine success

Traditionally, we consider a product or service successful if it’s desirable to humans, technologically feasible, and financially viable. You tend to see these represented as equals, if you type the three words in a search engine, you’ll find diagrams of three equally sized, evenly arranged circles.

However, we all know that the three dimensions are not equally important: viability is ultimately what determines whether a product will go live. So a more realistic representation might look like this:

The means are feasibility and desire, and viability is the aim. Companies—outside of nonprofits and charities—exist to make money.

A genuinely purpose-driven company would try to reverse this dynamic: it would recognize finance for what it was intended for: a means. Therefore, both the company’s goals and its viability are important in order to realize what they are trying to accomplish. It makes intuitive sense: to achieve most anything, you need resources, people, and money. Fun fact: Italian speakers are completely unaware of the distinction between feasibility and viability; both terms are merely fattibilità.

But simply swapping viable for desirable isn’t enough to achieve an ethical outcome. Desirability is still linked to consumerism because the associated activities aim to identify what people want—whether it’s good for them or not. When it comes to a product’s usability, such as user satisfaction or conversion, don’t take into account whether it is good for people. They don’t prevent us from creating products that distract or manipulate people or stop us from contributing to society’s wealth inequality. They are unable to restore a healthy relationship with nature.

There’s a fourth dimension of success that’s missing: our designs also need to be ethical in the effect that they have on the world.

This is hardly a new idea. There are many variations of these models, some calling them “imputability, integrity, or responsibility.” What I’ve never seen before, however, is the necessary step that comes after: to influence the system as designers and to make ethical design more practical, we must create objectives for ethical design that are achievable and inspirational. There is no single way to accomplish this because it depends greatly on your country’s values, culture, and industry. But I’ll give you the version that I developed with a group of colleagues at a design agency. Consider it a template to get started.

Ensure social justice, equity, and sustainability.

We created objectives that address design’s effect on three levels: individual, societal, and global.

An objective on a personal level teaches us that success transcends the typical area of user experience and satisfaction, taking into account factors like how much time and effort are required of users. We pursued well-being:

We create products and services that allow for people’s health and happiness. Our solutions are non-misleading, transparent, non-addictive, and non-misleading. We respect our users ‘ time, attention, and privacy, and help them make healthy and respectful choices.

A societal goal requires us to consider our impact beyond the mere user, widening our focus to the economy, communities, and other involuntary parties. We called this objective equity:

We create products and services that have a positive social impact. We think of racial justice, racial justice, and the inclusion and diversity of people as teams, users, and customer segments. We listen to local culture, communities, and those we affect.

Finally, the global goal on the global level aims to keep us in harmony with our only true home, humanity. Referring to it simply as sustainability, our definition was:

We create products and services that reward sufficiency and reusability. Our solutions promote the circular economy by generating value from waste, reusing products, and giving priority to sustainable choices. We deliver functionality instead of ownership, and we limit energy use.

In essence, ethical design ( to us ) meant achieving the wellbeing of each user and an equitable value distribution within society through a design that can sustain our living planet. When we introduced these objectives in the company, for many colleagues, design ethics and responsible design suddenly became tangible and achievable through practical—and even familiar—actions.

Measure impact

However, it is still necessary to define these goals. What truly caught the attention of senior management was the fact that we created a way to measure every design project’s well-being, equity, and sustainability.

This overview includes some examples of metrics you can use to measure your progress toward equity, well-being, and sustainability:

There’s a lot of power in measurement. As the saying goes, what gets measured gets done. Donella Meadows once provided this illustration:

” If the desired system state is national security, and that is defined as the amount of money spent on the military, the system will produce military spending. It may or may not lead to national security.

This phenomenon explains why desirability is a poor indicator of success: it’s typically defined as the increase in customer satisfaction, session length, frequency of use, conversion rate, churn rate, download rate, and so on. But none of these metrics increase the health of people, communities, or ecosystems. What if we instead used metrics for ( digital ) well-being, like ( reduced ) screen time or software energy consumption, to measure success?

There’s another important message here. If we were to choose the wrong metric for calmness, such as the number of interface elements, we might still end up with a screen that makes us anxious, even if we set an objective to create a calm interface. Choosing the wrong metric can completely undo good intentions.

Additionally, choosing the right metric is enormously helpful in focusing the design team. You are forced to consider what success looks like in real life and how you can demonstrate that you have met your ethical goals once you have chosen the metrics to use. It also forces you to consider what we as designers have control over: what can I include in my design or change in my process that will lead to the right type of success? The response to this query is very concise and focused.

And finally, it’s good to remember that traditional businesses run on measurements, and managers love to spend much time discussing charts ( ideally hockey-stick shaped ) —especially if they concern profit, the one-above-all of metrics. For good or ill, to improve the system, to have a serious discussion about ethical design with managers, we’ll need to speak that business language.

daily ethical design

Once you’ve defined your objectives and you have a reasonable idea of the potential metrics for your design project, only then do you have a chance to structurally practice ethical design. It” simply” becomes a matter of using your imagination and sifting through the knowledge and tools that are already at your disposal.

I think this is quite exciting! It opens a whole new set of challenges and considerations for the design process. Should you stick to that time-consuming video or would a brief illustration suffice? Which typeface is the most calm and inclusive? What brand-new equipment and techniques do you employ? When is the website’s end of life? How can you provide the same service while requiring less attention from users? How can you ensure that those who are affected by decisions are present when they are made? How can you measure our effects?

What doing good design means will be completely altered by the new definition of success.

There is, however, a final piece of the puzzle that’s missing: convincing your client, product owner, or manager to be mindful of well-being, equity, and sustainability. For this, it’s essential to engage stakeholders in a dedicated kickoff session.

Kick it off or return to the pre-existing situation.

The kickoff is the most important meeting that can be so easy to forget to include. It consists of two main steps: 1 ) the alignment of expectations and 2 ) the definition of success.

In the first phase, the entire ( design ) team goes over the project brief and meets with all the relevant stakeholders. Everyone gets to know one another and express their expectations on the outcome and their contributions to achieving it. Possumptions are raised and discussed. The aim is to get on the same level of understanding and to in turn avoid preventable miscommunications and surprises later in the project.

For instance, we had an online kickoff meeting with the client, a subject matter expert, and two other designers for a recent freelance project that aimed to create a digital platform that facilitates the documentation and communication of US student advisors. We used a combination of canvases on Miro: one with questions from” Manual of Me” ( to get to know each other ), a Team Canvas ( to express expectations ), and a version of the Project Canvas to align on scope, timeline, and other practical matters.

The above is the traditional purpose of a kickoff. However, agreeing on the project’s success means expressing expectations just as crucial as expressing expectations in terms of desire, viability, feasibility, and ethics. What are the objectives in each dimension?

You need to be sure that you can trust success at this early stage because it will determine the project’s future. If, for example, the design team wants to build an inclusive app for a diverse user group, they can raise diversity as a specific success criterion during the kickoff. If the client agrees, the team can refer back to that promise throughout the project. As we agreed in our first meeting, having A and B’s diverse user group is essential to creating a successful product. So we do activity X and follow research process Y”. Compare those odds to a scenario where the team had to request permission halfway through the project and didn’t agree to it in advance. The client might argue that that came on top of the agreed scope—and she’d be right.

In the case of this freelance project, to define success I prepared a round canvas that I call the Wheel of Success. A set of outer rings is used to measure the objectives, as well as an inner ring that is intended to capture ideas for those objectives. The rings are divided into five dimensions of successful design: healthy, equitable, sustainable, desirable, feasible, and viable.

We recorded ideas on digital sticky notes as we traversed each dimension. Then we discussed our ideas and verbally agreed on the most important ones. For example, our client agreed that sustainability and progressive enhancement are important success criteria for the platform. Additionally, the subject-matter expert stressed the value of involving students from underprivileged and low-income groups in the design process.

After the kickoff, we summarized our ideas and shared understanding in a project brief that captured these aspects:

the project’s history and purpose: What is the purpose of this project?
• the problem definition: what do we want to solve?
• the concrete goals and metrics for each success dimension: what do we want to achieve?
• how will we go about defining the scope, procedure, and role descriptions?

With such a brief in place, you can use the agreed-upon objectives and concrete metrics as a checklist of success, and your design team will be ready to pursue the right objective—using the tools, methods, and metrics at their disposal to achieve ethical outcomes.

Conclusion

A number of my coworkers have questioned me over the past year,” Where do I begin with ethical design?” My answer has always been the same: organize a session with your stakeholders to ( re ) define success. Even though you might not always be 100 percent successful in agreeing on goals that cover all responsibility objectives, that beats the alternative ( the status quo ) every time. There is no skipping this step if you want to be an ethical, responsible designer.

To be even more specific: if you consider yourself a strategic designer, your challenge is to define ethical objectives, set the right metrics, and conduct those kick-off sessions. If you think of yourself as a system designer, your first step should be to understand how your industry contributes to consumerism and inequality, how finance drives business, and how to think about how to use the system to exert the most influence. Then redefine success to create the space to exercise those levers.

And for those who consider themselves service designers or UX designers or UI designers: if you truly want to have a positive, meaningful impact, stay away from the toolkits and meetups and conferences for a while. Gather your coworkers and instead define design goals for well-being, equity, and sustainability. Engage your stakeholders in a workshop and challenge them to think of ways to achieve and measure those ethical goals. Give them their opinions, make them known and understandable, ask for their consent, and expect them to follow through with it.

Otherwise, I’m genuinely sorry to say, you’re wasting your precious time and creative energy.

Of course, engaging your stakeholders in this way can be uncomfortable. Many of my coworkers had questions to ask, such as” Will they take this seriously”?,” Will they take it seriously?” and “Can’t we just do it within the design team instead”? In fact, a product manager once asked me why ethics couldn’t just be a structured part of the design process—to just do it without spending the effort to define ethical objectives. It seems like a good idea, no? We wouldn’t have to have difficult discussions with stakeholders about what values or which key-performance indicators to pursue. It would let us focus on what we like and do best: designing.

However, as systems theory suggests, that’s not enough. For those of us who aren’t from marginalized groups and have the privilege to be able to speak up and be heard, that uncomfortable space is exactly where we need to be if we truly want to make a difference. We can’t allow ourselves to be disconnected from the real world and enjoy our preferred working-from-home lifestyle while remaining trapped in the design-for-design bubble. For those of us who have the possibility to speak up and be heard: if we solely keep talking about ethical design and it remains at the level of articles and toolkits—we’re not designing ethically. It’s just theory. By challenging them to redefine success in business, we must actively engage with our colleagues and clients.

With a bit of courage, determination, and focus, we can break out of this cage that finance and business-as-usual have built around us and become facilitators of a new type of business that can see beyond financial value. We simply need to come to terms with the right goals when starting each design project, identify the appropriate metrics, and acknowledge that we already have everything in place. That’s what it means to do daily ethical design.

For their inspiration and support over the years, I would like to thank Emanuela Cozzi Schettini, José Gallegos, Annegret Bönemann, Ian Dorr, Vera Rademaker, Virginia Rispoli, Cecilia Scolaro, Rouzbeh Amini, and many others.

The mobile-first style approach is fantastic because it concentrates on what is most important to the consumer, it’s well-practiced, and it’s a well-known layout design for years. But developing your CSS mobile-first should also be wonderful, too…right?

Well, not necessarily. Classic mobile-first CSS development is based on the principle of overwriting style declarations: you begin your CSS with default style declarations, and overwrite and/or add new styles as you add breakpoints with min-width media queries for larger viewports (for a good overview see “What is Mobile First CSS and Why Does It Rock?”). But all those exceptions create complexity and inefficiency, which in turn can lead to an increased testing effort and a code base that’s harder to maintain. Admit it—how many of us willingly want that?

Mobile-first CSS may yet be the best option for your own projects, but you need to first determine how acceptable it is in light of the physical design and user interactions you’re trying to create. To help you get started, here’s how I go about tackling the elements you need to watch for, and I’ll discuss some alternative remedies if mobile-first doesn’t seem to fit your job.

merits of mobile-first technology

Some of the benefits of mobile-first CSS creation, and why it’s been the de facto growth strategy for so long, make a lot of sense:

Development order. A good development hierarchy is something you can definitely get from mobile-first; you just get developing while paying attention to the mobile view.

tested and verified. It’s a tried and tested technique that’s worked for years for a cause: it solves a problem actually also.

prioritizes the portable watch. The mobile view is the simplest and arguably the most significant because it covers all the crucial user journeys and frequently accounts for a higher proportion of user visits ( depending on the project ) ).

Prevents desktop-centric growth. It can be tempting to first focus on the desktop perspective because desktop computers are used for growth. However, considering mobile from the beginning prevents us from getting stuck eventually; no one wants to spend their time getting a site that is focused on desktops to operate on mobile devices!

Drawbacks of mobile-first

Model declarations can be set at higher breakpoints and therefore overwritten at higher breakpoints:

More breadth. The farther up the target order you go, the more unnecessary password you inherit from lower thresholds.

higher CSS precision Styles that have been returned to the default value in a class name charter then have a higher sensitivity. This can be a pain on big projects when you want to preserve the CSS candidates as simple as possible.

Needs more regression analysis. All higher thresholds must be regression tested if CSS changes at lower views ( such as adding a new fashion ).

The browser can’t prioritize CSS downloads. At wider breakpoints, classic mobile-first min-width media queries don’t leverage the browser’s capability to download CSS files in priority order.

Property price issue: override

There is nothing inherently wrong with overwriting beliefs, CSS was designed to do just that. Even so, inheriting wrong principles can be laborious and ineffective. When you need to replace styles to restore them to their defaults, which may cause issues after, especially if you’re using a combination of bespoke CSS and power classes, does this also lead to more style specificity. We won’t be able to use a power school for a design that has been restore with a higher precision.

With this in mind, I’m developing CSS with a focus on the default values much more these days. Since there’s no specific order, and no chains of specific values to keep track of, this frees me to develop breakpoints simultaneously. I concentrate on finding common styles and isolating the specific exceptions in closed media query ranges (that is, any range with a max-width set).

As you can view each target as a clean slate, this strategy opens up some opportunities. It’s acceptable and can be coded in the default style plate if a product’s structure appears to be based on Flexbox at all thresholds. But if it looks like Grid would be much better for large windows and Flexbox for portable, these can both be done entirely freely when the CSS is put into finished media keyword ranges. Additionally, developing simultaneously requires you to have a thorough understanding of any given component in all breakpoints right away. This can help identify issues in the design more quickly during the development process. We don’t want to get stuck down a rabbit hole building a complex component for mobile, and then get the designs for desktop and find they are equally complex and incompatible with the HTML we created for the mobile view!

Although this strategy won’t work for everyone, I urge you to try it. There are plenty of tools available to support concurrent development, including Responsively App, Blisk, and many others.

Having said that, I don’t feel the order itself is particularly relevant. If you like to work on one device at a time, are comfortable with focusing on the mobile view, and are familiar with the requirements for other breakpoints, then you should definitely follow the classic development order. The key is to find common styles and exceptions so that you can include them in the appropriate stylesheet, which is a kind of manual tree-shaking procedure! Personally, I find this a little easier when working on a component across breakpoints, but that’s by no means a requirement.

In practice, closed media query ranges

We overwrite the styles in the classic mobile-first CSS, but we can prevent this by using media query ranges. To illustrate the difference ( I’m using SCSS for brevity ), let’s assume there are three visual designs:

• smaller than 768
• from 768 to less than 1024
• 1024 and anything larger

Take a simple example where a block-level element has a default padding of “20px,” which is overwritten at tablet to be “40px” and set back to “20px” on desktop.

.my-block { padding: 20px; @media (min-width: 768px) { padding: 40px; } @media (min-width: 1024px) { padding: 20px; }}

.my-block { padding: 20px; @media (min-width: 768px) and (max-width: 1023.98px) { padding: 40px; }}

The subtle difference is that the mobile-first example sets the default padding to “20px” and then overwrites it at each breakpoint, setting it three times in total. In contrast, the second example sets the default padding to “20px” and only overrides it at the relevant breakpoint where it isn’t the default value (in this instance, tablet is the exception).

The goal is to:

• Only set styles when needed.
• Not set them with the expectation of overwriting them later on, again and again.

To this end, closed media query ranges are our best friend. If we need to make a change to any given view, we make it in the CSS media query range that applies to the specific breakpoint. We’ll be much less likely to introduce unwanted alterations, and our regression testing only needs to focus on the breakpoint we have actually edited.

Taking the above example, if we find that .my-block spacing on desktop is already accounted for by the margin at that breakpoint, and since we want to remove the padding altogether, we could do this by setting the mobile padding in a closed media query range.

.my-block {  @media (max-width: 767.98px) {    padding: 20px;  }  @media (min-width: 768px) and (max-width: 1023.98px) {    padding: 40px;  }}

The browser default padding for our block is “0,” so instead of adding a desktop media query and using unset or “0” for the padding value (which we would need with mobile-first), we can wrap the mobile padding in a closed media query (since it is now also an exception) so it won’t get picked up at wider breakpoints. At the desktop breakpoint, we won’t need to set any padding style, as we want the browser default value.

Bundling versus separating the CSS

Due to the browser's concurrent request limit (typically around six ), it was crucial back then to keep the number of requests to a minimum. In consequence, using image sprites and CSS bundling was the norm, with all the CSS being downloaded as a single stylesheet with the highest priority.

With HTTP/2 and HTTP/3 now on the scene, the number of requests is no longer the big deal it used to be. This enables us to use a media query to break CSS into multiple files. The obvious benefit of this is that the browser can now request the CSS it currently requires with a higher priority than the CSS it doesn't. This is more performant and can reduce the overall time page rendering is blocked.

What version of HTTP do you use?

Go to your website and open your browser's dev tools to find out which version of HTTP you're using. Next, select the Network tab and make sure the Protocol column is visible. If "h2" is included in the protocol list, that indicates that HTTP/2 is being used.

Note: To check the Protocol column in your browser's dev tools, right-click any column header ( such as Name ), go to the Network tab, reload your page, and then check the Protocol column.

Also, if your website is still using HTTP/1... WHILE!! What are you waiting for? The HTTP/2 user support is excellent.

splitting the CSS

Separating the CSS into individual files is a worthwhile task. Linking the separate CSS files using the relevant media attribute allows the browser to identify which files are needed immediately (because they’re render-blocking) and which can be deferred. Based on this, it allocates each file an appropriate priority.

In the following example of a website visited on a mobile breakpoint, we can see the mobile and default CSS are loaded with" Highest" priority, as they are currently needed to render the page. The last three CSS files ( print, tablet, and desktop ) are still being downloaded in case they're needed later, but with" Lowest" priority.

Before rendering can begin, the browser will need to download the CSS file and parse it using bundled CSS before rendering can begin.

While, as noted, with the CSS separated into different files linked and marked up with the relevant media attribute, the browser can prioritize the files it currently needs. Using closed media query ranges allows the browser to do this at all widths, as opposed to classic mobile-first min-width queries, where the desktop browser would have to download all the CSS with Highest priority. We can’t assume that desktop users always have a fast connection. For instance, in many rural areas, internet connection speeds are still slow.

Depending on project requirements, the media queries and the number of separate CSS files will vary from project to project, but the example below might look similar.

Depending on the project’s deployment strategy, a change to one file (mobile.css, for example) would only require the QA team to regression test on devices in that specific media query range. Compare that to the prospect of deploying the single bundled site.css file, an approach that would normally trigger a full regression test.

Moving on

The adoption of mobile-first CSS was a significant development milestone because it allowed front-end developers to concentrate on mobile web applications rather than creating websites for desktop use and attempting to convert them to work on other devices.

I don't think anyone wants to return to that development model again, but it's important we don't lose sight of the issue it highlighted: that things can easily get convoluted and less efficient if we prioritize one particular device—any device—over others. For this reason, it seems like the natural next step to concentrate on the CSS in its own right, always mindful of what is the default setting and what constitutes an exception. I've started to notice subtle simplifications in both the CSS and other developers', and that the work is also a little more organized and effective.

In general, simplifying CSS rule creation whenever we can is ultimately a cleaner approach than going around in circles of overrides. However, the project must fit the methodology you choose. Mobile-first may turn out to be the best option for the situation at hand, but first you need to fully comprehend the trade-offs you're entering.

In tomorrow’s data-driven environment, it’s becoming more and more common for a UX expert to be asked to create a personal digital experience, whether it’s a common website, user portal, or local application. But while there continues to be no lack of marketing buzz around personalization systems, we also have very few defined approaches for implementing personalized UX.

That’s where we come in. After completing tens of personalisation projects over the past few years, we gave ourselves a purpose: could you make a systematic personalization platform especially for UX practitioners? A human-centered personalization program that includes data, classification, content delivery, and total objectives can be compared to the Personalization Pyramid, a design-focused design. By using this strategy, you will be able to understand the core elements of a modern, UX-driven personalization system ( or at the very least understand enough to get started ).

Getting Started

We’ll assume that you are already comfortable with the fundamentals of modern personalization for the purposes of this article. A nice guide can be found these: Website Personalization Planning. Although Graphic projects in this field can take a variety of forms, they frequently begin with identical starting points.

Common scenarios for starting a personalisation task:

• Your business or client made a purchase to support personalization of a content management system ( CMS ), marketing automation platform ( MAP ), or other related technology.
• The CMO, CDO, or CIO has identified personalisation as a target
• User data is unclear or disjointed.
• You are running some secluded targeting strategies or A/B tests
• On the personalisation method, parties of contention
• Mandate of customer privacy rules ( e. g. GDPR ) requires revisiting existing user targeting practices

Regardless of where you begin, a powerful personalization system will require the same key building stones. These are the “levels” on the tower, as we’ve made them. Whether you are a UX artist, scholar, or planner, understanding the core components may help make your contribution effective.

From top to bottom, the amounts include:

North Star: What larger corporate goal is driving the personalization system?
1. Objectives: What are the specific, tangible benefits of the system?
2. Touchpoints: Where will the personal service be provided?
3. Contexts and Campaigns: What personalization information does the person view?
4. What makes up a distinct, useable market according to user segments?
5. Actionable Data: What dependable and credible information is captured by our professional platform to generate personalization?
6. Natural Data: What wider set of data is conceivable ( now in our environment ) to allow you to optimize?

We’ll go through each of these amounts in turn. An associated deck of cards serves as an example of each level’s specific cases to make this more meaningful. We’ve found them helpful in customisation brainstorming periods, and will include cases for you here.

Starting at the Top

The tower has the following elements:

North Star

Ultimately, you want a North Star in your personalization program, whether big or small. The North Star defines the (one ) overall mission of the personalization program. What do you hope to accomplish? North Stars cast a ghost. The larger the sun, the larger the darkness. Example of North Starts may incorporate:

Function: Use simple user inputs to optimize. Examples:” Raw” messages, basic search effects, system user settings and settings options, general flexibility, basic improvements
1. Feature: Self-contained customisation component. Examples:” Cooked” notifications, advanced optimizations ( geolocation ), basic dynamic messaging, customized modules, automations, recommenders
2. User experience: Personal consumer experiences across various user flows and interactions. Examples: Email campaigns, landing pages, advanced messaging ( i. e. C2C chat ) or conversational interfaces, larger user flows and content-intensive optimizations ( localization ).
3. Solution: Highly distinctive, personalized solution experiences. Example: Standalone, branded encounters with personalization at their base, like the “algotorial” songs by Spotify quite as Discover Weekly.

Goals

Personalization can aid in developing with client intentions, just like it is with any great UX design. Goals are the military and tangible metrics that may prove the entire program is effective. Start with your existing analytics and measurement system, as well as metrics that you can benchmark against. In some cases, new targets may be suitable. The most important thing to remember is that personalisation is more of a means of achieving an objective than a desired result. Popular targets include:

• Conversion
• Time spent on work
• Net promoter score ( NPS)
• Client satisfaction

Touchpoints

Touchpoints are where the personalisation happens. This will be one of your biggest areas of responsibility as a UX custom. The connections available to you will depend on how your personalization and associated technology features are instrumented, and should be rooted in improving a person’s experience at a certain point in the trip. Touchpoints can be multi-device ( mobile, in-store, website ), but they can also be more specific ( web banner, web pop-up, etc. ). Here are a few illustrations:

Channel-level touchpoints

• Email: Role
• Email opens at what time?
• In-store display ( JSON endpoint )
• Native app
• Search

Wireframe-level Touchpoints

• Web overlay
• Web alert bar
• Web banner
• Web content block
• Menu on the web

If you’re designing for web interfaces, for example, you will likely need to include personalized “zones” in your wireframes. Based on our next step, context, and campaigns, the content for these can be presented programmatically in touchpoints.

Contexts and Campaigns

Once you’ve identified some touchpoints, you can decide what kind of personalized content a user will receive. Many personalization tools will refer to these as” campaigns” ( so, for example, a campaign on a web banner for new visitors to the website ). These will be displayed programmatically to specific user segments at specific touchpoints, as defined by user data. At this stage, we find it helpful to consider two separate models: a context model and a content model. The context helps you consider the level of user engagement at the personalization moment, for instance, if they are just casually browsing information rather than engaging in a deep dive. Think of it in terms of information retrieval behaviors. The content model can then guide you in deciding what kind of personalization to use in the context ( for instance, an” Enrich” campaign that features related articles might be a good substitute for extant content ).

Personalization Context Model:

1. Browse
2. Skim
3. Nudge
4. Feast

Content model for personalization:

1. Alert
2. Make Easier
3. Cross-Sell
4. Enrich

We’ve written a lot more in depth about each of these models elsewhere, so be sure to check out Colin’s Personalization Content Model and Jeff’s Personalization Context Model.

User Groups

User segments can be created prescriptively or adaptively, based on user research ( e. g. via rules and logic tied to set user behaviors or via A/B testing ). You will need to think about how to treat the logged-in visitor, the guest or returning visitor for whom you may have a stateful cookie ( or another post-cookie identifier ), or the authenticated visitor who is logged in at the very least. Here are some examples from the personalization pyramid:

• Unknown
• Guest
• Authenticated
• Default
• Referred
• Role
• Cohort
• Unique ID

Actionable Data

Every organization with any digital presence has data. It’s important to inquire about how to use the data you can ethically collect on users, its inherent reliability and value, and how to use it ( sometimes referred to as “data activation” ). Fortunately, the tide is turning to first-party data: a recent study by Twilio estimates some 80 % of businesses are using at least some type of first-party data to personalize the customer experience.

First-party data has a number of benefits on the user experience front, including being relatively simple to collect, more likely to be accurate, and less susceptible to the” creep factor” of third-party data. So a key part of your UX strategy should be to determine what the best form of data collection is on your audiences. Here are a few illustrations:

There is a progression of profiling when it comes to recognizing and making decisioning about different audiences and their signals. As user data volume and time and confidence increase, it varies more granularly to more precise constructs about ever-smaller cohorts of users.

While some combination of implicit / explicit data is generally a prerequisite for any implementation ( more commonly referred to as first party and third-party data ) ML efforts are typically not cost-effective directly out of the box. This is because optimization requires a strong data backbone and content repository. But these approaches should be considered as part of the larger roadmap and may indeed help accelerate the organization’s overall progress. You’ll typically work together to create a profiling model with key stakeholders and product owners. The profiling model includes defining approach to configuring profiles, profile keys, profile cards and pattern cards. a scalable, multi-faceted approach to profiling.

Pulling it Together

The cards serve as the foundation for an inventory of sorts ( we provide blanks for you to tailor your own ), a set of potential levers and motivations for the kind of personalization activities you aspire to deliver, but they are more valuable when grouped together.

In assembling a card “hand”, one can begin to trace the entire trajectory from leadership focus down through a strategic and tactical execution. It serves as the foundation for the workshops that both co-authors have conducted to build a program backlog, which would make a good article topic.

In the meantime, what is important to note is that each colored class of card is helpful to survey in understanding the range of choices potentially at your disposal, it is threading through and making concrete decisions about for whom this decisioning will be made: where, when, and how.

Lay Down Your Cards

Any effective personalization plan must take into account near, middle, and long-term objectives. Even with the leading CMS platforms like Sitecore and Adobe or the most exciting composable CMS DXP out there, there is simply no “easy button” wherein a personalization program can be stood up and immediately view meaningful results. Having said that, all personalization activities follow a common grammar, similar to how every sentence contains nouns and verbs. These cards attempt to map that territory.
